SKU: UCLP203

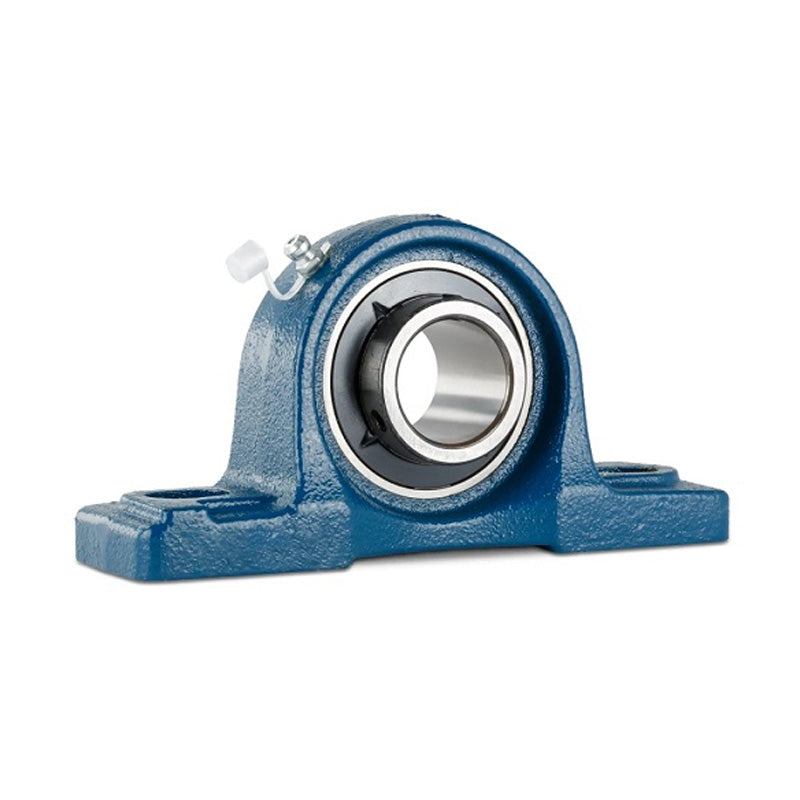

UCLP203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Insert
UCLP203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Insert
Regular price
$17.26
ex VAT
Regular price
Sale price
$17.26
ex VAT
In stock
Price Break
10+
$15.36
19+
$14.50
29+
$14.33
39+
$14.15
49+
$13.98
74+
$13.81
99+
$12.95
199+
$12.77
249+
$12.60
499+
$12.43
999+
$12.08
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCLP
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 17mm |
|---|---|
| h | 31.75mm |
| a | 127mm |
| e | 95mm |
| b | 38mm |
| s1 | 13mm |
| s2 | 16mm |
| g | 14mm |
| w | 64mm |
| B | 31mm |
| n | 12.7mm |
| Bolt size | M10 |
| Bearing no | UC203 |
| Housing no | LP203 |
| Weight | 0.67 kg |
