SKU: UCLP203-11
UCLP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Insert
UCLP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Insert
Regular price
$18.58
ex VAT
Regular price
Sale price
$18.58
ex VAT
In stock
Price Break
10+
$16.54
19+
$15.61
29+
$15.42
39+
$15.24
49+
$15.05
74+
$14.86
99+
$13.94
199+
$13.75
249+
$13.56
499+
$13.38
999+
$13.01
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 95.25mm = 3.75 (3-3/4) inch

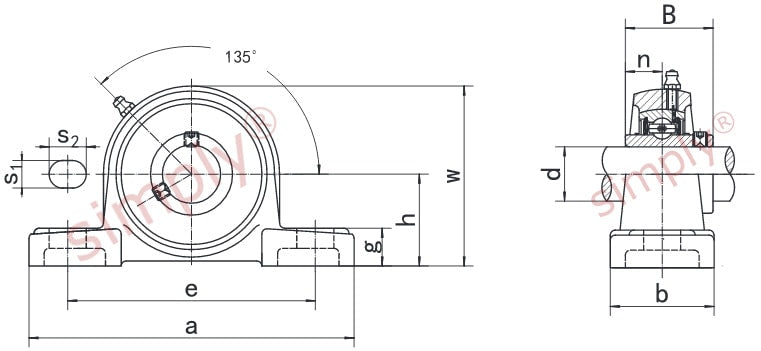

Technical
Technical
| d | 11/16 inch |
|---|---|
| h | 1-1/4 inch |
| a | 5 inch |
| e | 3-3/4 inch |
| b | 1-1/2 inch |
| s1 | 1/2 inch |
| s2 | 5/8 inch |
| g | 9/16 inch |
| w | 2-33/64 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC203-11 |
| Housing no | LP203 |
| Weight | 0.66 kg |
