SKU: UCLP206

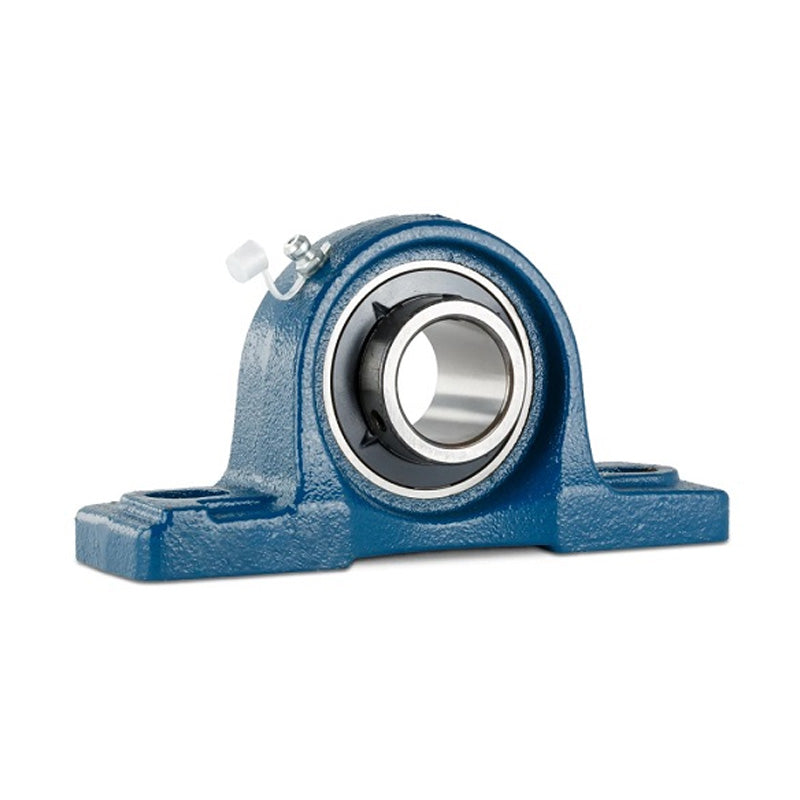

UCLP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Insert
UCLP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Insert
Regular price
$13.65
ex VAT
Regular price
Sale price
$13.65
ex VAT
In stock
Price Break
10+
$12.15
19+
$11.47
29+
$11.33
39+
$11.19
49+
$11.06
74+
$10.92
99+
$10.24
199+
$10.10
249+
$9.96
499+
$9.83
999+
$9.56
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCLP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 39.69mm |
| a | 160mm |
| e | 121mm |
| b | 44mm |
| s1 | 17mm |
| s2 | 20mm |
| g | 17mm |
| w | 80mm |
| B | 38.1mm |
| n | 15.9mm |
| Bolt size | M14 |
| Bearing no | UC206 |
| Housing no | LP206 |
| Weight | 1.11 kg |
