SKU: UCLP207

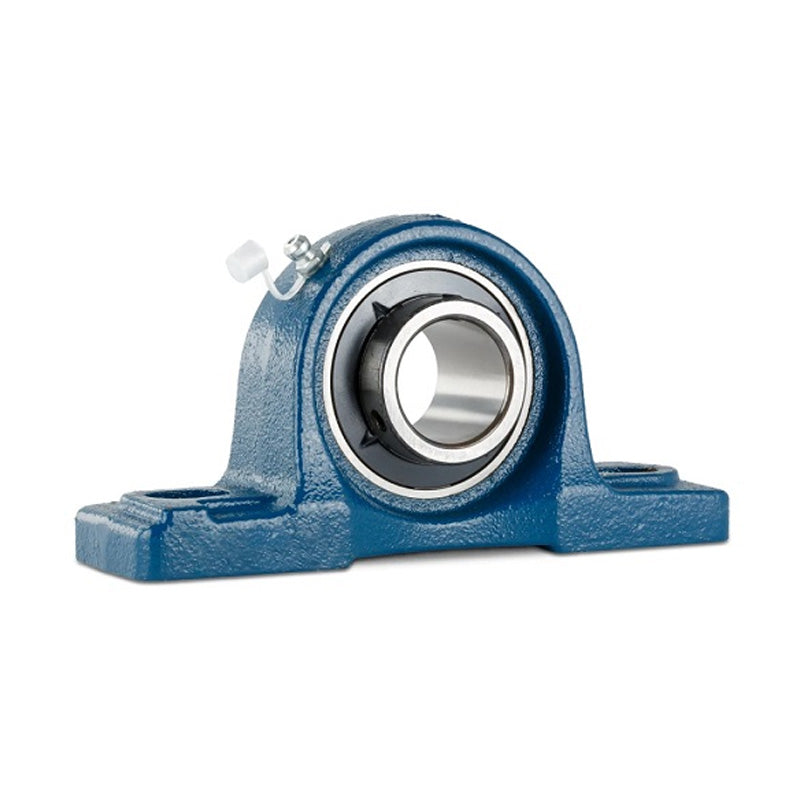

UCLP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Insert
UCLP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Insert
Regular price
$20.95
ex VAT
Regular price
Sale price
$20.95
ex VAT
In stock
Price Break
10+
$18.65
19+
$17.60
29+
$17.39
39+
$17.18
49+
$16.97
74+
$16.76
99+
$15.71
199+
$15.50
249+
$15.29
499+
$15.08
999+
$14.67
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCLP
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 46.04mm |
| a | 167mm |
| e | 127mm |
| b | 48mm |
| s1 | 17mm |
| s2 | 20mm |
| g | 18mm |
| w | 91mm |
| B | 42.9mm |
| n | 17.5mm |
| Bolt size | M14 |
| Bearing no | UC207 |
| Housing no | LP207 |
| Weight | 1.42 kg |
