SKU: UCLP207-23

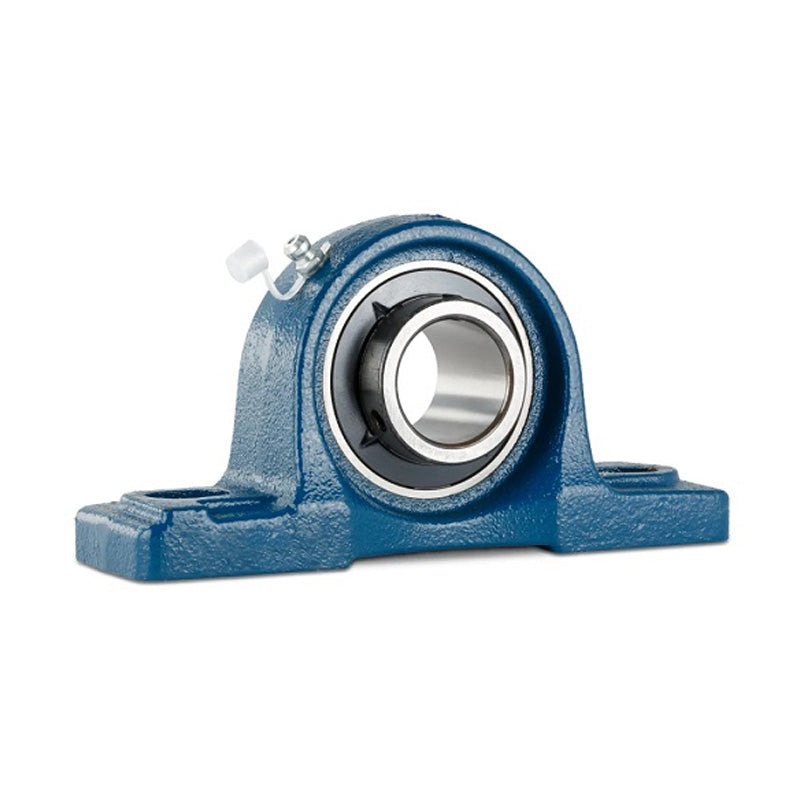

UCLP207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Insert
UCLP207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Insert
Regular price
$30.71
ex VAT
Regular price
Sale price
$30.71
ex VAT
In stock
Price Break
10+
$27.33
19+
$25.80
29+
$25.49
39+
$25.18
49+
$24.88
74+
$24.57
99+
$23.03
199+
$22.73
249+
$22.42
499+
$22.11
999+
$21.50
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 127mm = 5 inch
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| h | 1-13/16 inch |
| a | 6-9/16 inch |
| e | 5 inch |
| b | 1-7/8 inch |
| s1 | 43/64 inch |
| s2 | 25/32 inch |
| g | 45/64 inch |
| w | 3-37/64 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC207-23 |
| Housing no | LP207 |
| Weight | 1.39 kg |
