SKU: UCP.214.TS.CHAL

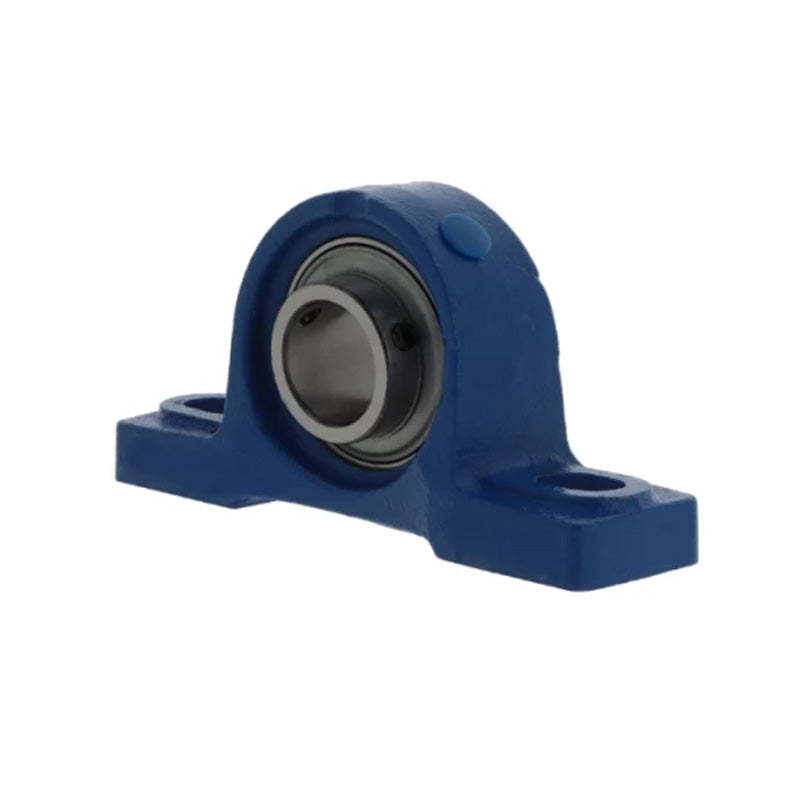

Challenge / FK UCP214 Metric Cast Iron Two Bolt Pillow Block Housing with 70mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCP214 Metric Cast Iron Two Bolt Pillow Block Housing with 70mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$241.30
ex VAT
Regular price
Sale price
$241.30
ex VAT
Equivalent to: UCP.214
In stock
Price Break
10+
$214.76
19+
$202.69
29+
$200.28
39+
$197.87
49+
$195.45
74+
$193.04
99+
$180.98
199+
$178.56
249+
$176.15
499+
$173.74
999+
$168.91
Description
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.214
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 70mm
- Style:
- UCP
- Bolt Hole Centres:
- 210mm
Technical
Technical
| Shaft Diameter d | 70mm |
|---|---|
| Casting Centre Line Height h | 79.4mm |
| Casting Length a | 266mm |
| Recommended Bolt Centres l | 210mm |
| Casting Width b | 72mm |
| Slot Length s<sub>2</sub> | 28mm |
| Slot Width s<sub>1</sub> | 25mm |
| Foot Height g | 27mm |
| Overall Height w | 156mm |
| Bearing Insert Width Bi | 74.6mm |
| Back of Bearing to Centre Line n | 30.2mm |
| Bolt Size | M20 |
| Grub Screws x 2 | M12x1.50mm |
| Load Rating (Dynamic) | 4870kg |
| Load Rating (Static) | 3810kg |
| Max Speed | 1300 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC214 |
| Housing No | P214 |
