SKU: UCP.215.TS.CHAL

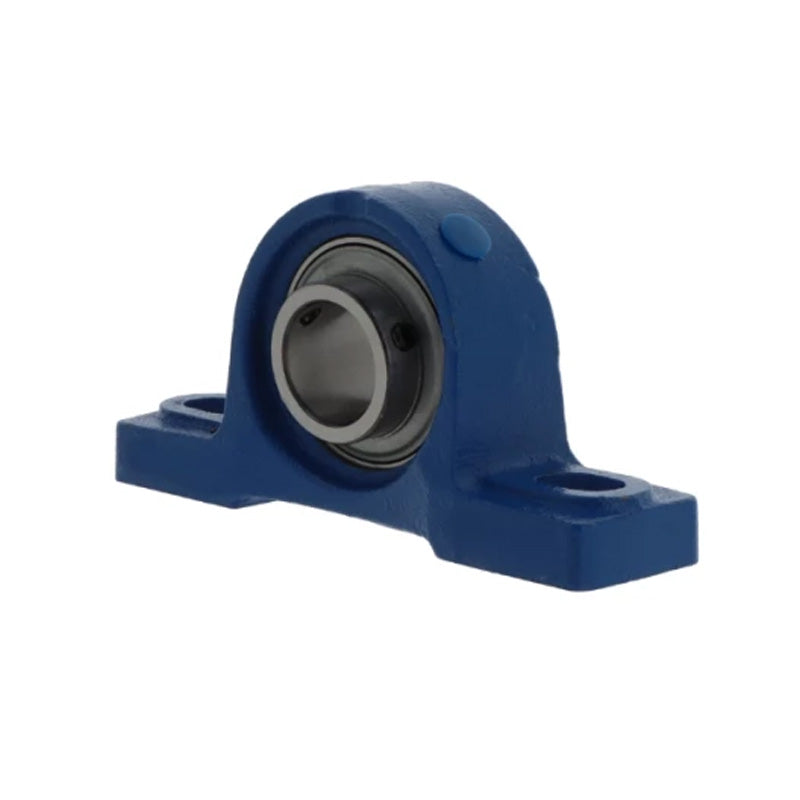

Challenge / FK UCP215 Metric Cast Iron Two Bolt Pillow Block Housing with 75mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCP215 Metric Cast Iron Two Bolt Pillow Block Housing with 75mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$322.96
ex VAT
Regular price
Sale price
$322.96
ex VAT
Equivalent to: UCP.215
In stock
Price Break
10+
$287.43
19+
$271.29
29+
$268.06
39+
$264.83
49+
$261.60
74+
$258.37
99+
$242.22
199+
$238.99
249+
$235.76
499+
$232.53
999+
$226.07
Description
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.215
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 75mm
- Style:
- UCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| Shaft Diameter d | 75mm |
|---|---|
| Casting Centre Line Height h | 82.6mm |
| Casting Length a | 275mm |
| Recommended Bolt Centres l | 217mm |
| Casting Width b | 74mm |
| Slot Length s<sub>2</sub> | 28mm |
| Slot Width s<sub>1</sub> | 25mm |
| Foot Height g | 28mm |
| Overall Height w | 162mm |
| Bearing Insert Width Bi | 77.8mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Bolt Size | M20 |
| Grub Screws x 2 | M12X1.50mm |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1200 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC215 |
| Housing No | P215 |
