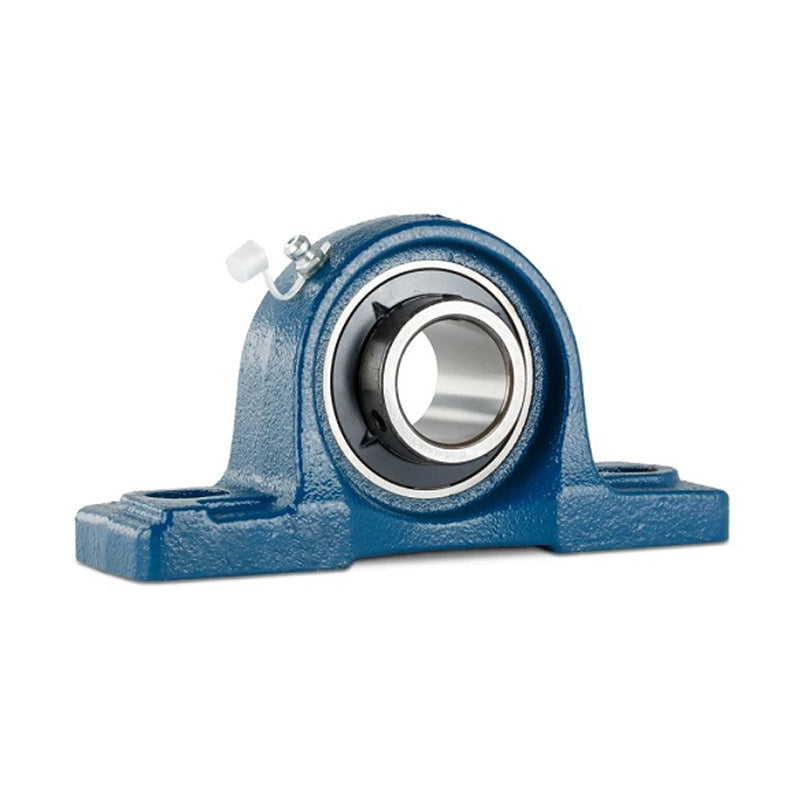

UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert
UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert
Regular price
$468.34
ex VAT
Regular price
Sale price
$468.34
ex VAT
In stock
Price Break
10+
$416.82
19+
$393.41
29+
$388.72
39+
$384.04
49+
$379.36
74+
$374.67
99+
$351.26
199+
$346.57
249+
$341.89
499+
$337.20
999+
$327.84
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Style:
- UCP
- Bolt Hole Centres:
- 380mm
Technical
Technical
| d | 100mm |
|---|---|
| h | 140mm |
| a | 490mm |
| e | 380mm |
| b | 120mm |
| s2 | 50mm |
| s1 | 36mm |
| g | 50mm |
| w | 275mm |
| b1 | 108mm |
| n | 42mm |
| Bolt | 33mm |
| Weight | 34.8 kg |
| Dynamic load | 13580 kgf |
| Static load | 12860 kgf |
