SKU: UCP.324

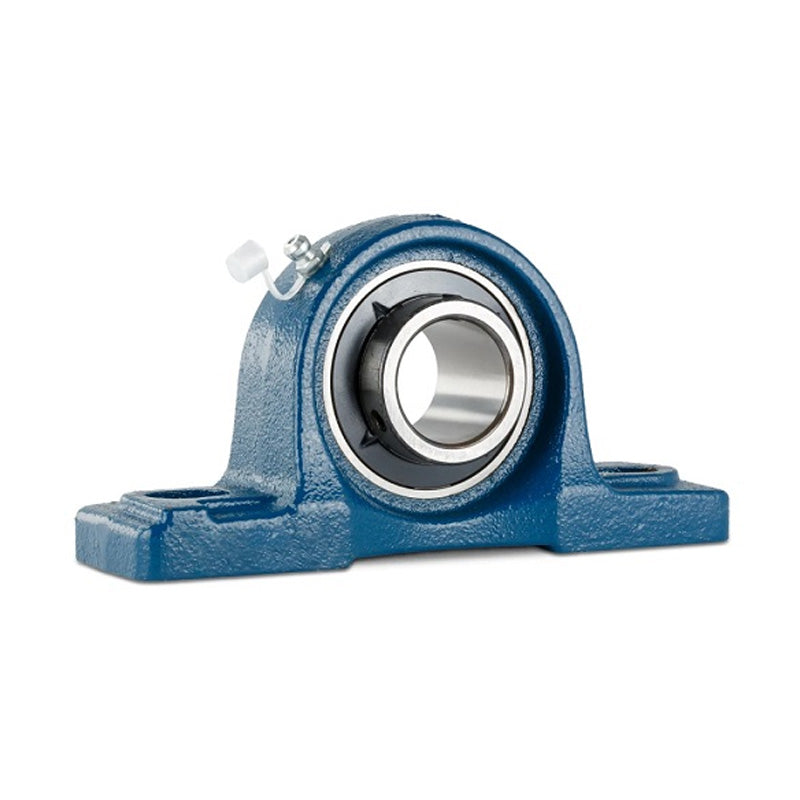

UCP324 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 120mm Bore Insert
UCP324 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 120mm Bore Insert
Regular price
$1,084.33
ex VAT
Regular price
Sale price
$1,084.33
ex VAT
In stock
Price Break
10+
$965.05
19+
$910.84
29+
$899.99
39+
$889.15
49+
$878.31
74+
$867.46
99+
$813.25
199+
$802.40
249+
$791.56
499+
$780.72
999+
$759.03
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Style:
- UCP
- Bolt Hole Centres:
- 450mm
Technical
Technical
| d | 120mm |
|---|---|
| h | 160mm |
| a | 570mm |
| e | 450mm |
| b | 140mm |
| s2 | 55mm |
| s1 | 40mm |
| g | 50mm |
| w | 316mm |
| b1 | 126mm |
| n | 51mm |
| Bolt | 33mm |
| Weight | 54 kg |
| Dynamic load | 20700 kgf |
| Static load | 18500 kgf |
