SKU: UCP314D1-NTN

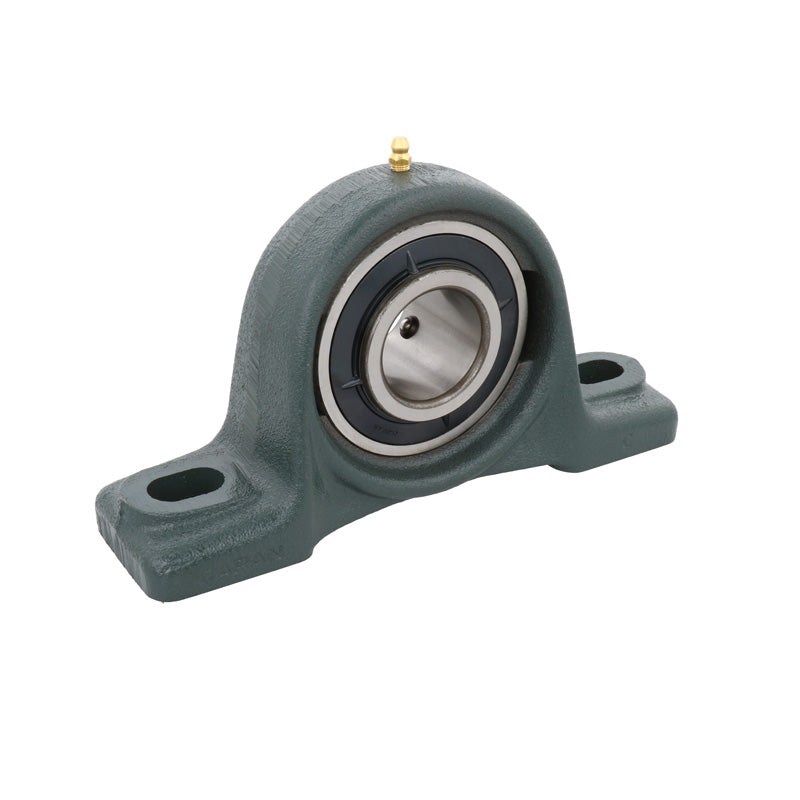

NTN UCP314D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
NTN UCP314D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
$208.75
ex VAT
Regular price
Sale price
$208.75
ex VAT
In stock
Price Break
10+
$185.79
19+
$175.35
29+
$173.26
39+
$171.18
49+
$169.09
74+
$167.00
99+
$156.56
199+
$154.48
249+
$152.39
499+
$150.30
999+
$146.13
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCP
- Bolt Hole Centres:
- 280mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| H | 95mm |
| L | 360mm |
| J | 280mm |
| A | 90mm |
| N | 27mm |
| N<sub>1</sub> | 40mm |
| H<sub>1</sub> | 35mm |
| H<sub>2</sub> | 187mm |
| L<sub>1</sub> | 105mm |
| B | 78mm |
| S | 33mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 115 kN |
| Static load C<sub>0r</sub> | 68 kN |
| Fatigue load limit C<sub>u</sub> | 5.1 kN |
| --- | Unit information |
| Mass | 12 kg |
