SKU: UCP316D1-NTN

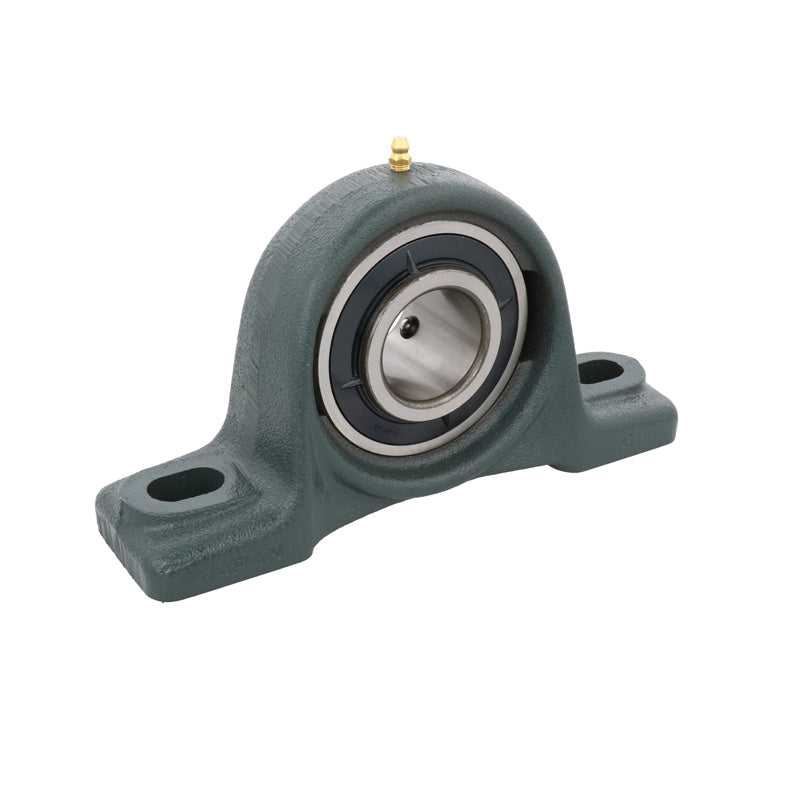

NTN UCP316D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
NTN UCP316D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
$313.44
ex VAT
Regular price
Sale price
$313.44
ex VAT
In stock
Price Break
10+
$278.96
19+
$263.29
29+
$260.16
39+
$257.02
49+
$253.89
74+
$250.75
99+
$235.08
199+
$231.95
249+
$228.81
499+
$225.68
999+
$219.41
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCP
- Bolt Hole Centres:
- 300mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| H | 106mm |
| L | 400mm |
| J | 300mm |
| A | 110mm |
| N | 27mm |
| N<sub>1</sub> | 40mm |
| H<sub>1</sub> | 40mm |
| H<sub>2</sub> | 210mm |
| L<sub>1</sub> | 110mm |
| B | 86mm |
| S | 34mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 136 kN |
| Static load C<sub>0r</sub> | 86.5 kN |
| Fatigue load limit C<sub>u</sub> | 6.05 kN |
| --- | Unit information |
| Mass | 17 kg |
