SKU: UCP318D1-NTN

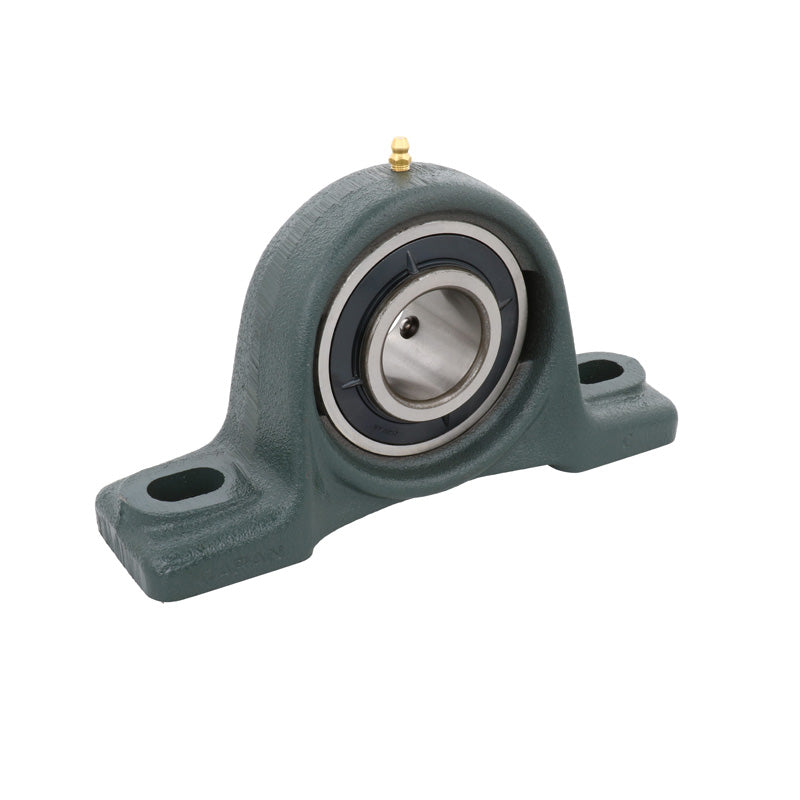

NTN UCP318D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
NTN UCP318D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
$387.76
ex VAT
Regular price
Sale price
$387.76
ex VAT
In stock
Price Break
10+
$345.11
19+
$325.72
29+
$321.84
39+
$317.96
49+
$314.09
74+
$310.21
99+
$290.82
199+
$286.94
249+
$283.06
499+
$279.19
999+
$271.43
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCP
- Bolt Hole Centres:
- 330mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| H | 118mm |
| L | 430mm |
| J | 330mm |
| A | 110mm |
| N | 33mm |
| N<sub>1</sub> | 45mm |
| H<sub>1</sub> | 45mm |
| H<sub>2</sub> | 235mm |
| L<sub>1</sub> | 120mm |
| B | 96mm |
| S | 40mm |
| Fixing bolt | M27 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 158 kN |
| Static load C<sub>0r</sub> | 107 kN |
| Fatigue load limit C<sub>u</sub> | 7.1 kN |
| --- | Unit information |
| Mass | 22 kg |
