SKU: UCPA.206

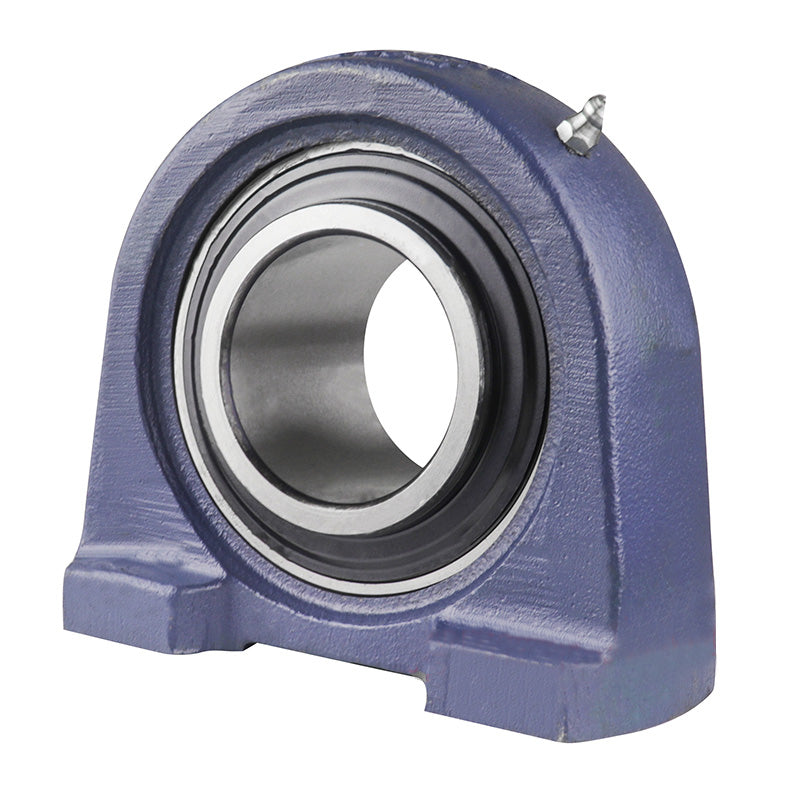

UCPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert
UCPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert
Regular price
$20.13
ex VAT
Regular price
Sale price
$20.13
ex VAT
Equivalent to: SNP30
In stock
Price Break
10+
$17.92
19+
$16.91
29+
$16.71
39+
$16.51
49+
$16.31
74+
$16.10
99+
$15.10
199+
$14.90
249+
$14.69
499+
$14.49
999+
$14.09
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCPA
- Bolt Hole Centres:
- 66mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 42.9mm |
| a | 94mm |
| e | 66mm |
| b | 50mm |
| s | M14 |
| g | 12mm |
| w | 84mm |
| D | 18mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
