SKU: UCPA.206-18

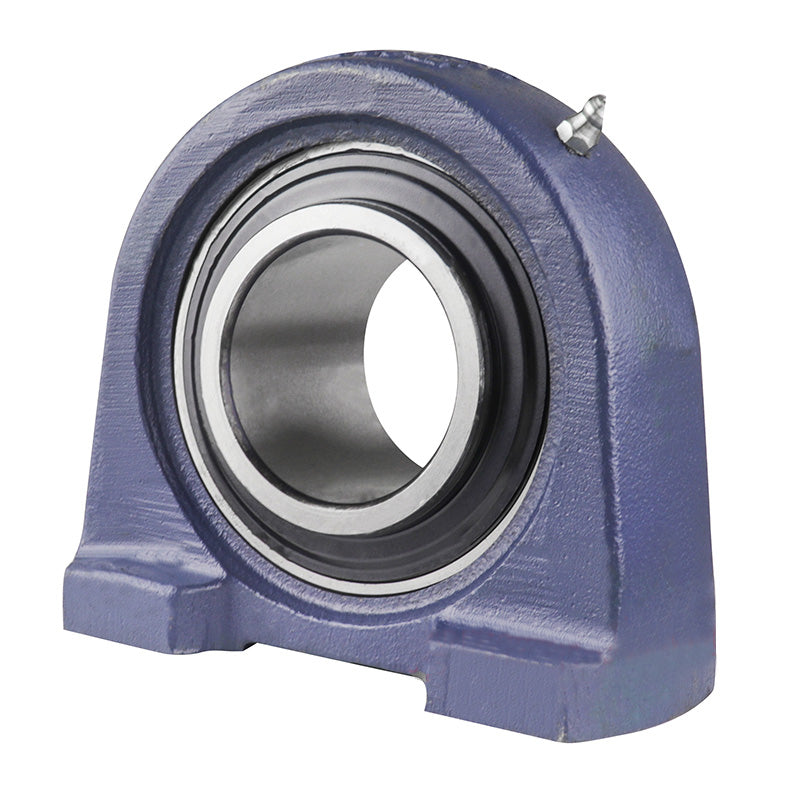

UCPA206-18 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/8 inch Bore Insert
UCPA206-18 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/8 inch Bore Insert
Regular price
$22.01
ex VAT
Regular price
Sale price
$22.01
ex VAT
In stock
Price Break
10+
$19.59
19+
$18.49
29+
$18.27
39+
$18.05
49+
$17.83
74+
$17.61
99+
$16.51
199+
$16.29
249+
$16.07
499+
$15.85
999+
$15.41
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 65.88mm = 2.594 (2-19/32) inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 1-11/16" |
| a | 3-11/16" |
| e | 2-19/32" |
| b | 1-31/32" |
| s | M14 |
| g | 15/32" |
| w | 3-5/16" |
| D | 25/32" |
| Bi | 1.5" |
| n | 0.6260" |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
