SKU: UCPA.208

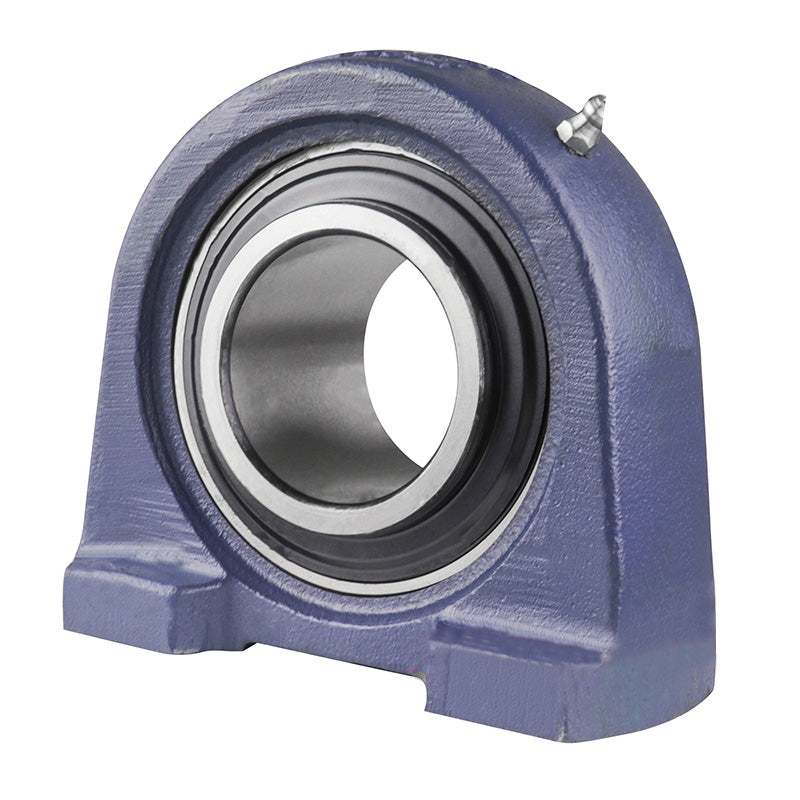

UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
Regular price
$20.40
ex VAT
Regular price
Sale price
$20.40
ex VAT
Equivalent to: SNP40
In stock
Price Break
10+
$18.16
19+
$17.14
29+
$16.93
39+
$16.73
49+
$16.52
74+
$16.32
99+
$15.30
199+
$15.10
249+
$14.89
499+
$14.69
999+
$14.28
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP40
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCPA
- Bolt Hole Centres:
- 84mm
Technical
Technical
| d | 40mm |
|---|---|
| h | 49.2mm |
| a | 116mm |
| e | 84mm |
| b | 58mm |
| s | M14 |
| g | 13mm |
| w | 100mm |
| D | 20mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
