SKU: UCPA.209

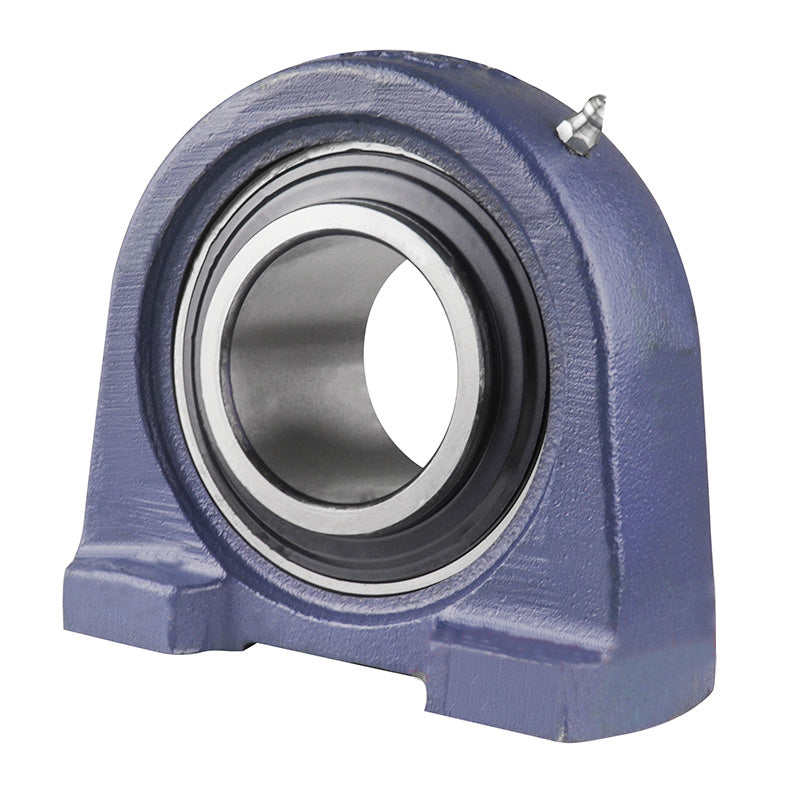

UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert
UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert
Regular price
$37.34
ex VAT
Regular price
Sale price
$37.34
ex VAT
Equivalent to: SNP45
In stock
Price Break
10+
$33.23
19+
$31.37
29+
$30.99
39+
$30.62
49+
$30.25
74+
$29.87
99+
$28.01
199+
$27.63
249+
$27.26
499+
$26.88
999+
$26.14
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCPA
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 54.2mm |
| a | 120mm |
| e | 90mm |
| b | 60mm |
| s | M14 |
| g | 13mm |
| w | 108mm |
| D | 25mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
