SKU: UCPEX16-SNR

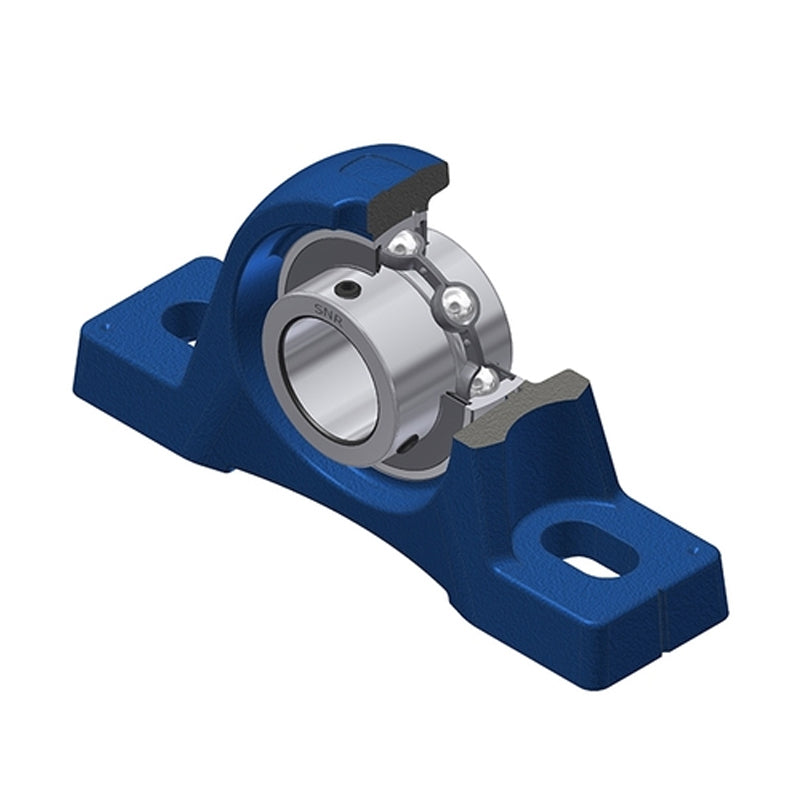

SNR UCPEX16 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
SNR UCPEX16 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
$267.84
ex VAT
Regular price
Sale price
$267.84
ex VAT
In stock
Price Break
5+
$265.16
10+
$254.45
20+
$249.09
50+
$241.06
100+
$235.70
500+
$222.31
1000+
$187.49
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCPEX
- Bolt Hole Centres:
- 288.8mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 101.8mm |
| A1 | 68.8mm |
| B | 85.7mm |
| H | 101.6mm |
| H1 | 31.8mm |
| H2 | 203.7mm |
| J | 288.8mm |
| L | 381mm |
| L1 | 105mm |
| N | 27mm |
| N1 | 55.7mm |
| S | 34.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 83.2 kN |
| Static load C0 | 63.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 16.05 kg |
