SKU: UCPH202

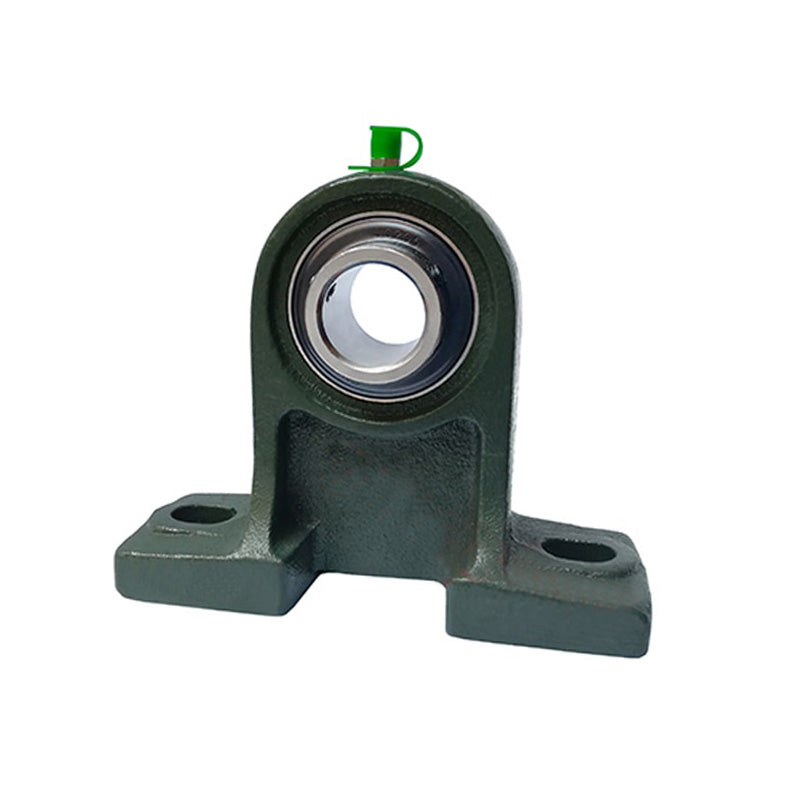

UCPH202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Insert
UCPH202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Insert
Regular price
$14.23
ex VAT
Regular price
Sale price
$14.23
ex VAT
In stock
Price Break
10+
$12.66
19+
$11.95
29+
$11.81
39+
$11.67
49+
$11.53
74+
$11.38
99+
$10.67
199+
$10.53
249+
$10.39
499+
$10.25
999+
$9.96
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- UCPH
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 15mm |
|---|---|
| h | 70mm |
| a | 127mm |
| e | 95mm |
| b | 40mm |
| s1 | 13mm |
| s2 | 19mm |
| g | 15mm |
| w | 101mm |
| B | 31mm |
| n | 12.7mm |
| Bolt size | M10 |
| Bearing no | UC202 |
| Housing no | PH202 |
| Weight | 0.83 kg |
