SKU: UCPH204-12

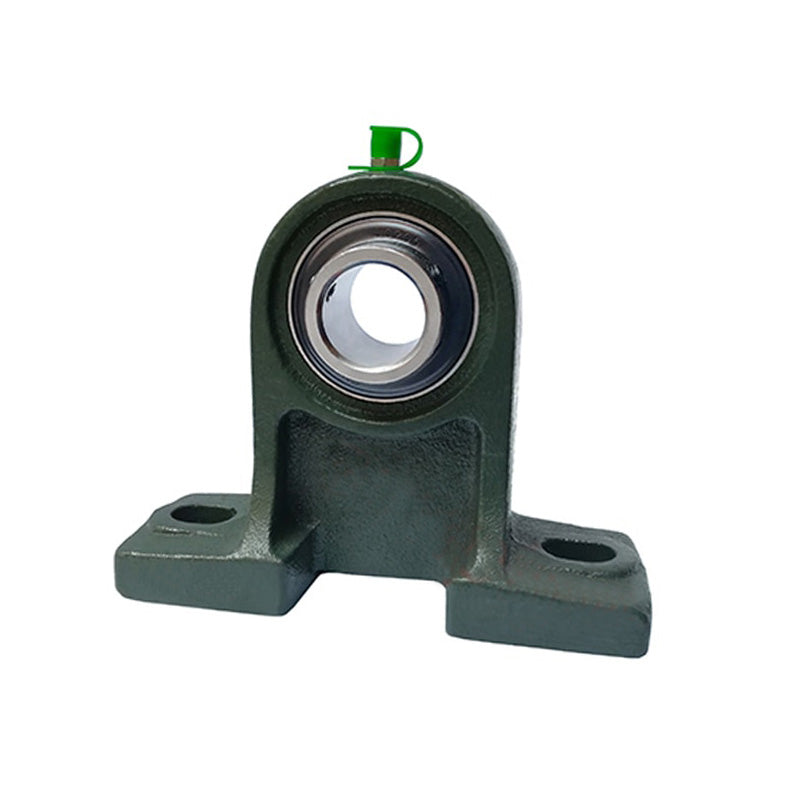

UCPH204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Insert
UCPH204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Insert
Regular price
$19.34
ex VAT
Regular price
Sale price
$19.34
ex VAT
In stock
Price Break
10+
$17.21
19+
$16.25
29+
$16.05
39+
$15.86
49+
$15.67
74+
$15.47
99+
$14.51
199+
$14.31
249+
$14.12
499+
$13.92
999+
$13.54
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 95.25mm = 3.75 (3-3/4) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| h | 2-3/4 inch |
| a | 5 inch |
| e | 3-3/4 inch |
| b | 1-9/16 inch |
| s1 | 1/2 inch |
| s2 | 3/4 inch |
| g | 19/32 inch |
| w | 3-63/64 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC204-12 |
| Housing no | PH204 |
| Weight | 0.8 kg |
