SKU: UCPH205-16

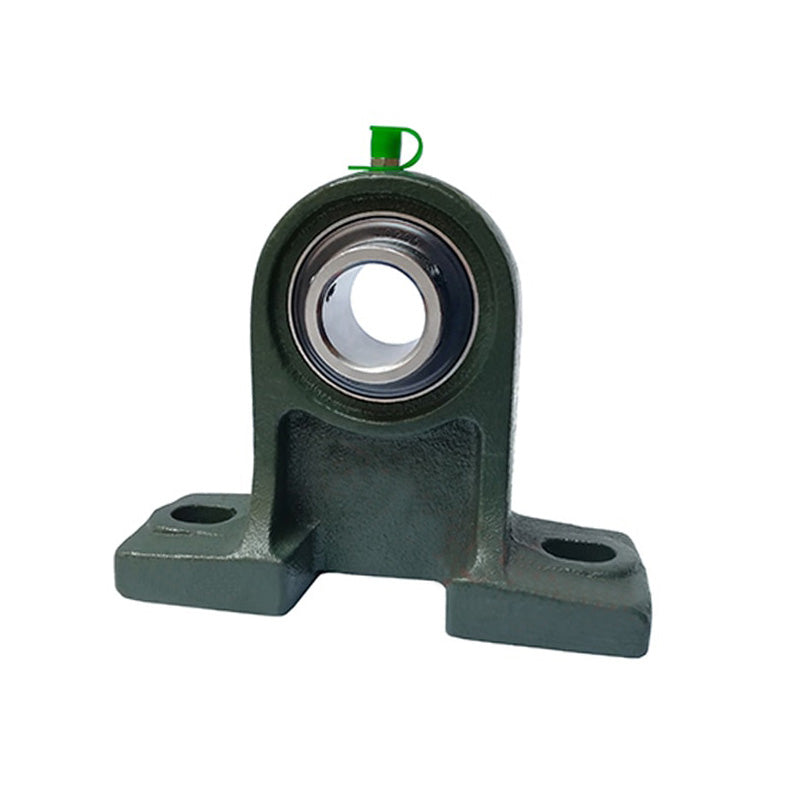

UCPH205-16 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Insert
UCPH205-16 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Insert
Regular price
$21.84
ex VAT
Regular price
Sale price
$21.84
ex VAT
In stock
Price Break
10+
$19.44
19+
$18.35
29+
$18.13
39+
$17.91
49+
$17.69
74+
$17.47
99+
$16.38
199+
$16.16
249+
$15.94
499+
$15.72
999+
$15.29
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCPH
- Bolt Hole Centres:
- 104.78mm = 4.125 (4-1/8) inch
Technical
Technical
| d | 1 inch |
|---|---|
| h | 3-5/32 inch |
| a | 5-1/2 inch |
| e | 4-1/8 inch |
| b | 1-31/32 inch |
| s1 | 1/2 inch |
| s2 | 3/4 inch |
| g | 5/8 inch |
| w | 4-31/64 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC205-16 |
| Housing no | PH205 |
| Weight | 1.04 kg |
