SKU: UCPH208

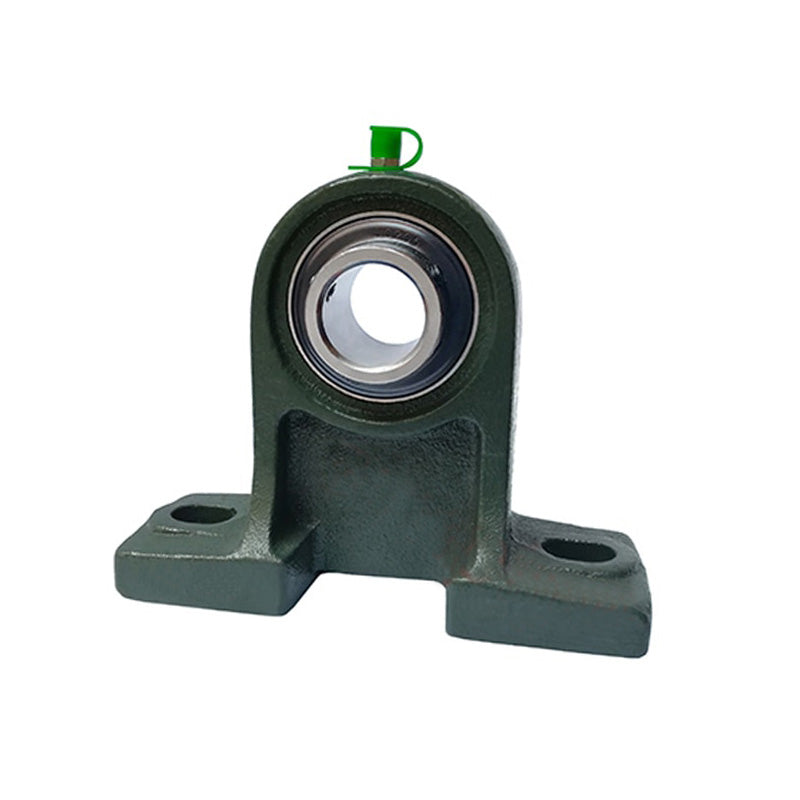

UCPH208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Insert
UCPH208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Insert
Regular price
$42.75
ex VAT
Regular price
Sale price
$42.75
ex VAT
In stock
Price Break
10+
$38.05
19+
$35.91
29+
$35.48
39+
$35.06
49+
$34.63
74+
$34.20
99+
$32.06
199+
$31.64
249+
$31.21
499+
$30.78
999+
$29.93
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCPH
- Bolt Hole Centres:
- 137mm
Technical
Technical
| d | 40mm |
|---|---|
| h | 100mm |
| a | 178mm |
| e | 137mm |
| b | 70mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 19mm |
| w | 150mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC208 |
| Housing no | PH208 |
| Weight | 2.4 kg |
