SKU: UCPH209-26

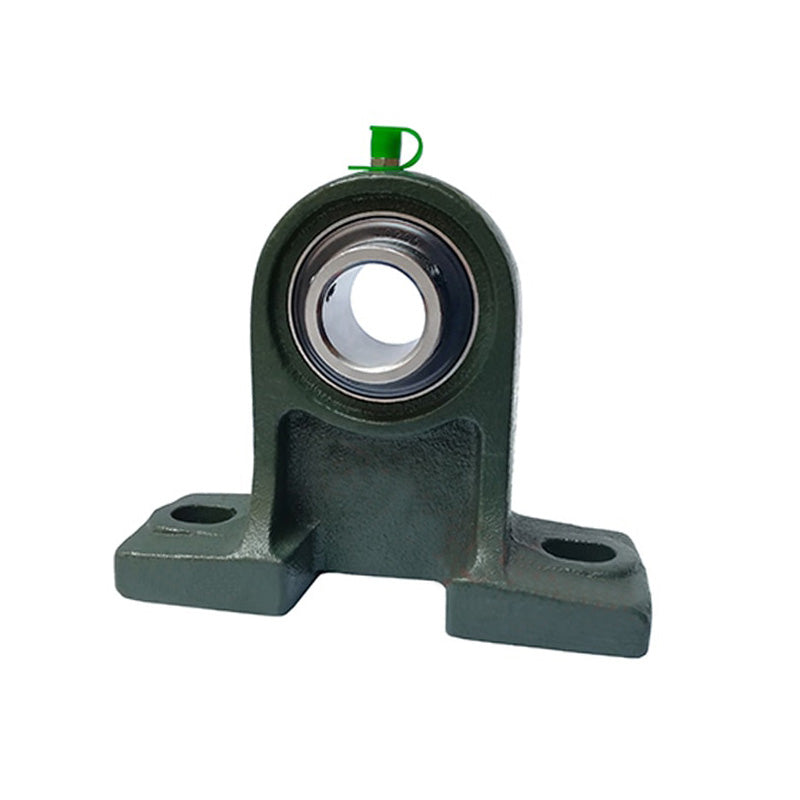

UCPH209-26 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/8 inch Insert
UCPH209-26 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/8 inch Insert
Regular price
$50.80
ex VAT
Regular price
Sale price
$50.80
ex VAT
In stock
Price Break
10+
$45.21
19+
$42.67
29+
$42.16
39+
$41.66
49+
$41.15
74+
$40.64
99+
$38.10
199+
$37.59
249+
$37.08
499+
$36.58
999+
$35.56
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 146.05mm = 5.75 (5-3/4) inch
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| h | 4-9/64 inch |
| a | 7-7/16 inch |
| e | 5-3/4 inch |
| b | 2-3/4 inch |
| s1 | 43/64 inch |
| s2 | 53/64 inch |
| g | 25/32 inch |
| w | 6-7/32 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC209-26 |
| Housing no | PH209 |
| Weight | 2.77 kg |
