SKU: UCPLE208-SNR

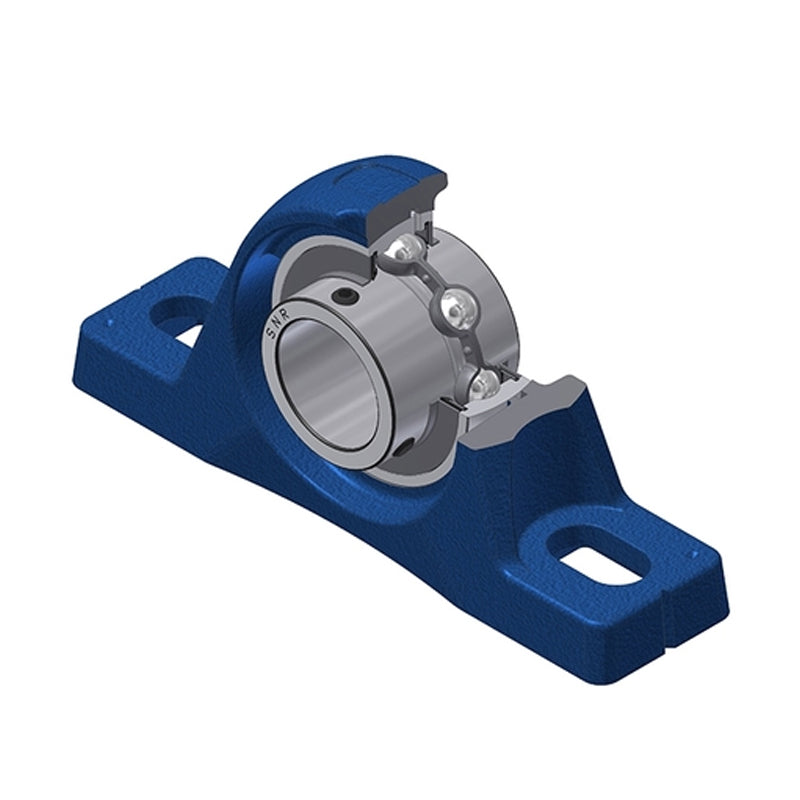

SNR UCPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
SNR UCPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
Regular price
$43.70
ex VAT
Regular price
Sale price
$43.70
ex VAT
In stock
Price Break
10+
$38.89
19+
$36.71
29+
$36.27
39+
$35.83
49+
$35.40
74+
$34.96
99+
$32.78
199+
$32.34
249+
$31.90
499+
$31.46
999+
$30.59
Description
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPLE
- Bolt Hole Centres:
- 137.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 51mm |
| A1 | 34.5mm |
| B | 49.2mm |
| H | 49.2mm |
| H1 | 18.5mm |
| H2 | 98.5mm |
| J | 137.5mm |
| L | 180.5mm |
| N | 14mm |
| N1 | 24.5mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.94 kg |
