SKU: UCPX.16.TS.CHAL
Challenge / FK UCPX16 Metric Cast Iron Two Bolt Pillow Block Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCPX16 Metric Cast Iron Two Bolt Pillow Block Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$376.72
ex VAT
Regular price
Sale price
$376.72
ex VAT
Equivalent to: UCPX.16
In stock
Price Break
10+
$335.28
19+
$316.44
29+
$312.68
39+
$308.91
49+
$305.14
74+
$301.38
99+
$282.54
199+
$278.77
249+
$275.01
499+
$271.24
999+
$263.70
Description
Description

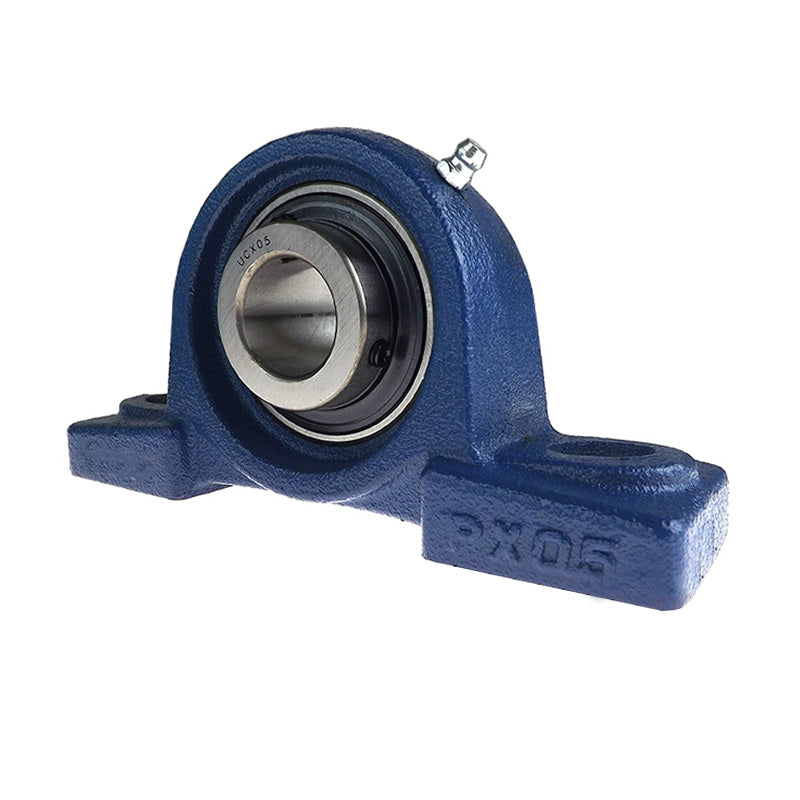

UCPX Cast Iron Two Bolt Pillow Block Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCPX.16
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 80mm
- Style:
- UCPX
- Bolt Hole Centres:
- 283mm
Technical
Technical
| Shaft Diameter d | 80mm |
|---|---|
| Casting Centre Line Height h | 101.6mm |
| Casting Length a | 381mm |
| Recommended Bolt Centres l | 283mm |
| Casting Width b | 102mm |
| Slot Length s<sub>2</sub> | 54mm |
| Slot Width s<sub>1</sub> | 27mm |
| Foot Height g | 42mm |
| Overall Height w | 196mm |
| Bearing Insert Width Bi | 85.7mm |
| Back of Bearing to Centre Line n | 34.1mm |
| Bolt Size | M22 |
| Insert No | UCX16 |
| Housing No | PX16 |
