SKU: UCTX09

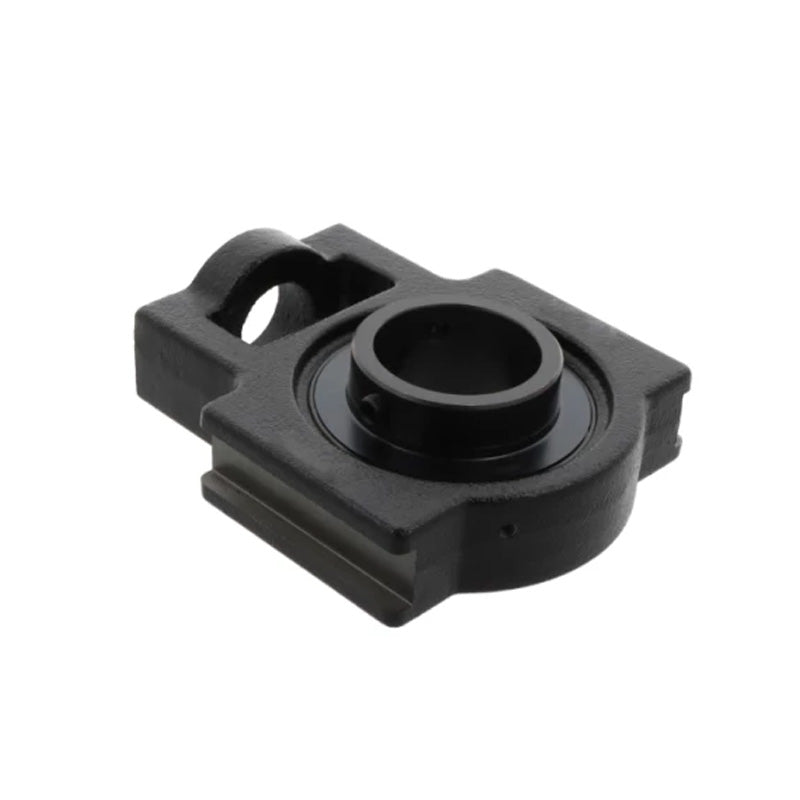

UCTX09 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert
UCTX09 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert
Regular price
$47.36
ex VAT
Regular price
Sale price
$47.36
ex VAT
In stock
Price Break
10+
$42.15
19+
$39.78
29+
$39.31
39+
$38.84
49+
$38.36
74+
$37.89
99+
$35.52
199+
$35.05
249+
$34.57
499+
$34.10
999+
$33.15
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCTX
Technical
Technical
| d | 45mm |
|---|---|
| o | 19mm |
| g | 18mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 86mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| w | 151mm |
| j | 38mm |
| l | 49mm |
| h | 92mm |
| B | 51.6mm |
| n | 19mm |
| Bearing no | UCX09 |
| Housing no | TX09 |
| Weight | 2.7 kg |
