SKU: UCTX09-27

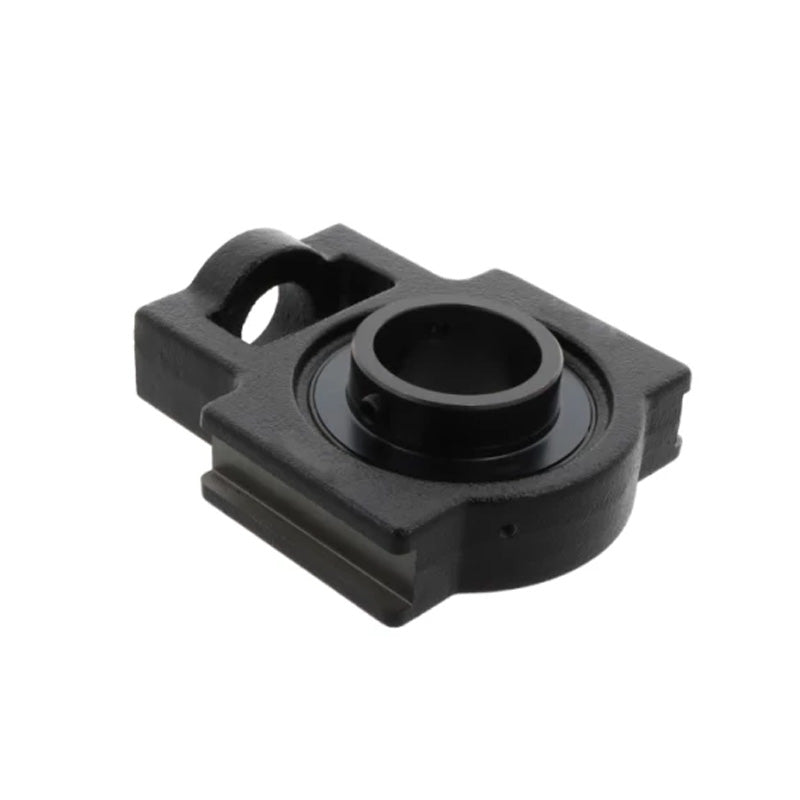

UCTX09-27 Imperial Cast Iron Take Up Unit Housing with 1-11/16 inch Bore Insert
UCTX09-27 Imperial Cast Iron Take Up Unit Housing with 1-11/16 inch Bore Insert
Regular price
$64.54
ex VAT
Regular price
Sale price
$64.54
ex VAT
In stock
Price Break
10+
$57.44
19+
$54.21
29+
$53.57
39+
$52.92
49+
$52.28
74+
$51.63
99+
$48.41
199+
$47.76
249+
$47.11
499+
$46.47
999+
$45.18
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCTX
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| o | 3/4 inch |
| g | 23/32 inch |
| p | 3-17/64 inch |
| q | 1-15/16 inch |
| s | 1-9/64 inch |
| b | 3-25/64 inch |
| k | 0.63 inch |
| e | 4-1/64 inch |
| a | 4-39/64 inch |
| w | 5-15/16 inch |
| j | 1-1/2 inch |
| l | 1-15/16 inch |
| h | 3-5/8 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing no | UCX09-27 |
| Housing no | TX09 |
| Weight | 2.7 kg |
