SKU: UCTX11-35

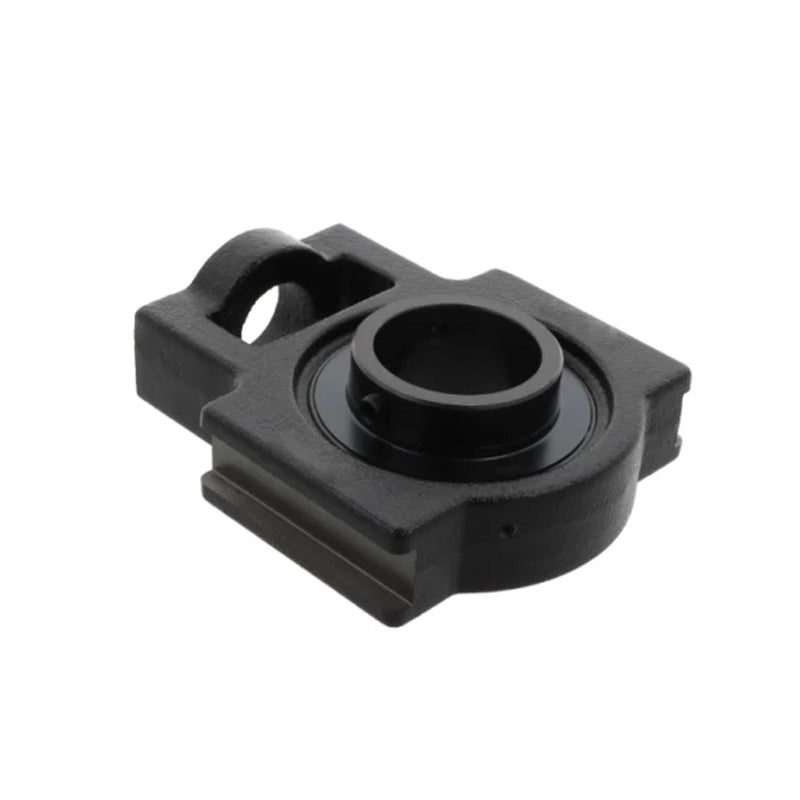

UCTX11-35 Imperial Cast Iron Take Up Unit Housing with 2-3/16 inch Bore Insert
UCTX11-35 Imperial Cast Iron Take Up Unit Housing with 2-3/16 inch Bore Insert
Regular price
$79.92
ex VAT
Regular price
Sale price
$79.92
ex VAT
In stock
Price Break
10+
$71.13
19+
$67.13
29+
$66.33
39+
$65.53
49+
$64.74
74+
$63.94
99+
$59.94
199+
$59.14
249+
$58.34
499+
$57.54
999+
$55.94
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCTX
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| o | 1-17/64 inch |
| g | 13/16 inch |
| p | 4-1/64 inch |
| q | 2-33/64 inch |
| s | 1-3/8 inch |
| b | 4-1/64 inch |
| k | 0.866 inch |
| e | 5-1/8 inch |
| a | 5-3/4 inch |
| w | 7-41/64 inch |
| j | 1-23/32 inch |
| l | 2-33/64 inch |
| h | 4-11/16 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bearing no | UCX11-35 |
| Housing no | TX11 |
| Weight | 4.9 kg |
