SKU: UCX.10-32.TS.CHAL

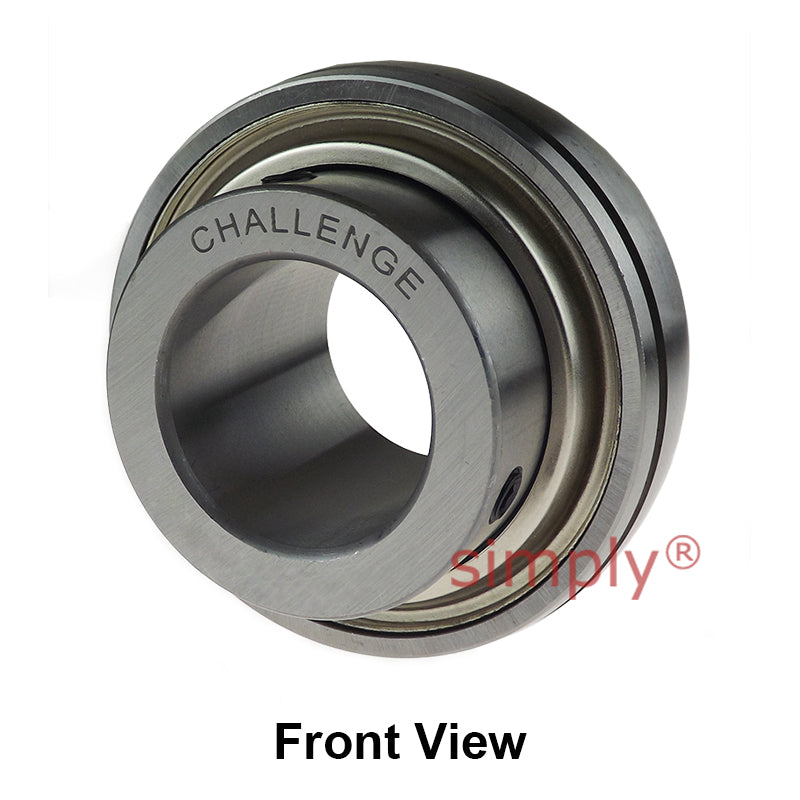

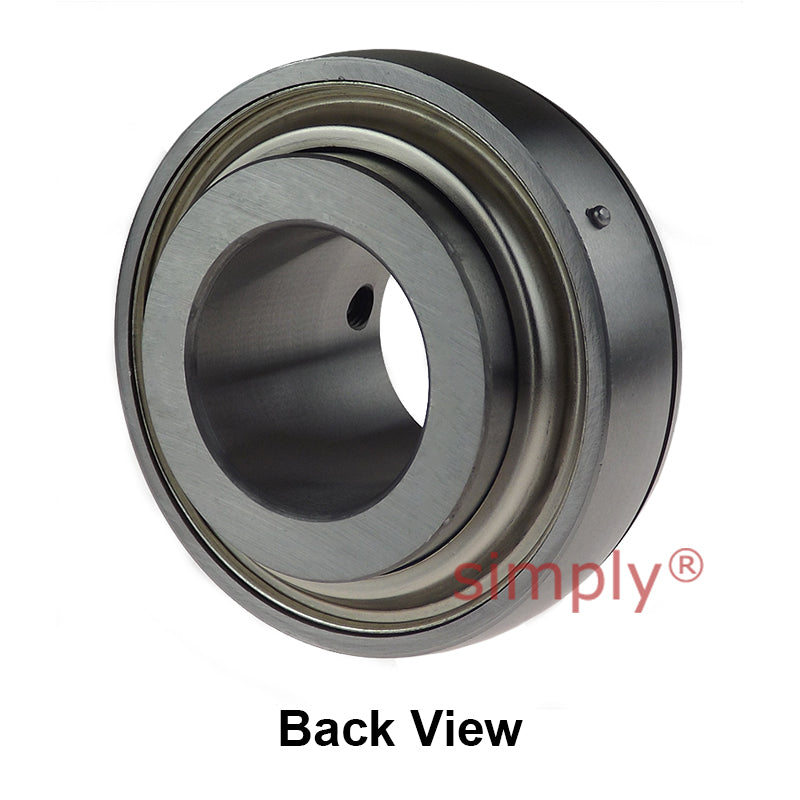

Challenge UCX10-32 Imperial Insert with Grub Screws with 2 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX10-32 Imperial Insert with Grub Screws with 2 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$84.58
ex VAT
Regular price
Sale price
$84.58
ex VAT
Equivalent to: UCX.10-32
In stock
Price Break
10+
$75.28
19+
$71.05
29+
$70.20
39+
$69.36
49+
$68.51
74+
$67.66
99+
$63.44
199+
$62.59
249+
$61.74
499+
$60.90
999+
$59.21
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.10-32
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 2 inch |
|---|---|
| Outside Diameter D | 100mm |
| Overall Width Bi | 55.6mm |
| Inner Race Width Be | 25mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Front of Bearing to Centre Line m | 33.4mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1800 rev/min |
| Working Temperature | -30°C to +120°C |
