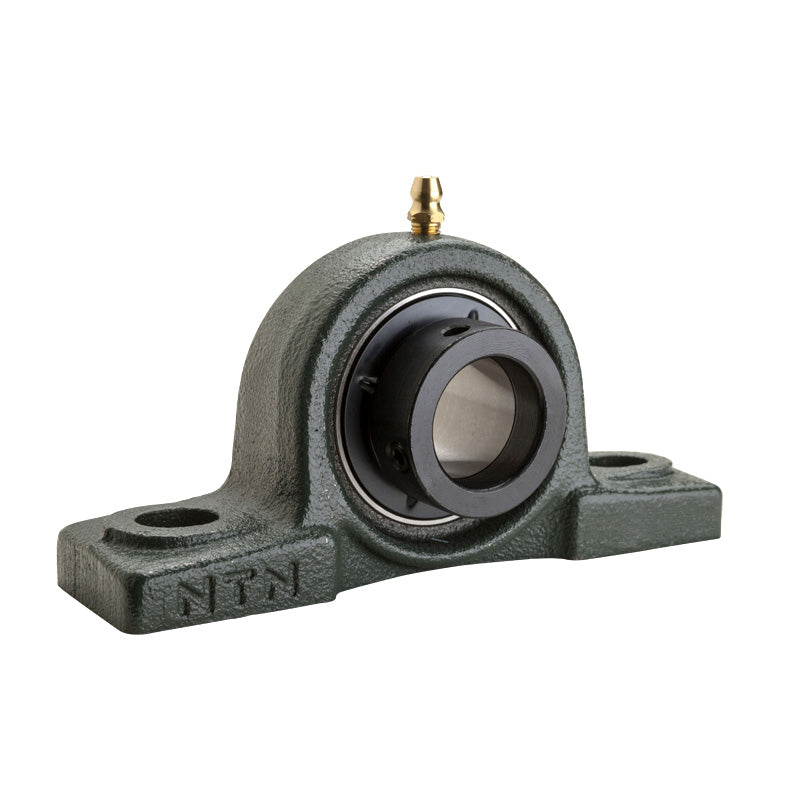

NTN UELP312D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP312D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$267.63
ex VAT
Regular price
Sale price
$267.63
ex VAT
In stock
Price Break
5+
$264.95
10+
$254.25
20+
$248.90
50+
$240.87
100+
$235.51
500+
$222.13
1000+
$187.34
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UELP
- Bolt Hole Centres:
- 250mm
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| H | 85mm |
| L | 330mm |
| J | 250mm |
| A | 85mm |
| N | 25mm |
| N<sub>1</sub> | 38mm |
| H<sub>1</sub> | 32mm |
| H<sub>2</sub> | 165mm |
| L<sub>1</sub> | 95mm |
| B<sub>1</sub> | 79.4mm |
| S | 30.95mm |
| Fixing bolt | M20 |
| Mass | 9.7 kg |
