SKU: UELT210D1-NTN

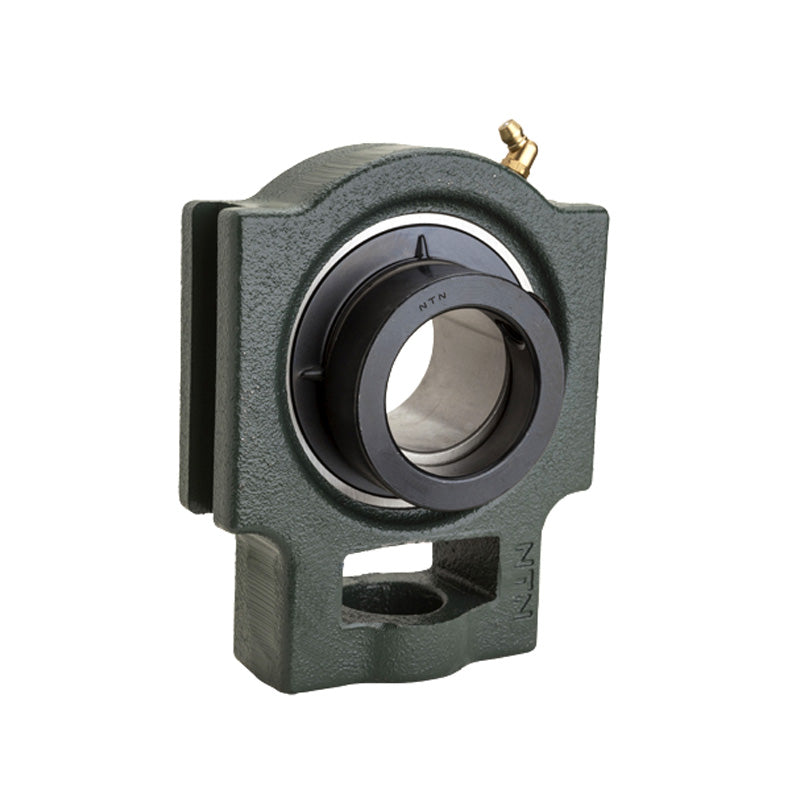

NTN UELT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$104.04
ex VAT
Regular price
Sale price
$104.04
ex VAT
In stock
Price Break
5+
$103.00
10+
$98.84
20+
$96.76
50+
$93.64
100+
$91.56
500+
$86.35
1000+
$72.83
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELT
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 86mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 117mm |
| L | 151mm |
| A<sub>2</sub> | 37mm |
| A | 49mm |
| r | 59mm |
| L<sub>1</sub> | 92mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| Mass | 2.7 kg |
