SKU: UJDN22X10-MB

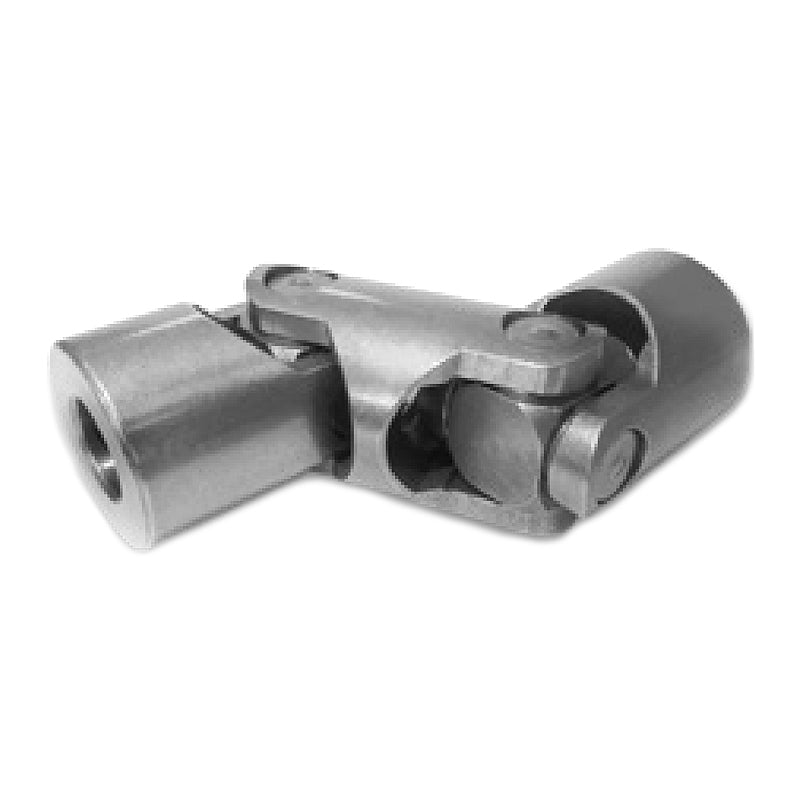

Branded UJDN22X10 Steel Universal Double Joint with Needle Roller Bearing 10x22x74mm
In stock
Price Break
Description
UJDN Steel Universal Double Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features two hinges at 90 degrees to each other, connected by a cross shaft. This universal joint is double-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power. Double cardan joints use two-phased universal joints to reduce variations in angular velocity.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Length:
- 74mm
- Style:
- UJDN

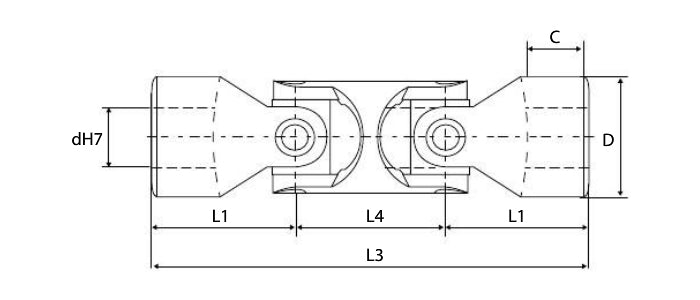

Technical
| Bore d H7 | 10mm |
|---|---|
| Diameter D | 22mm |
| Overall length L3 | 74mm |
| Pivot to face centre L1 | 24mm |
| Pivot to pivot centre L4 | 26mm |
| Hub length C | 12mm |
| Maximum working angle | 90 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Weight KG | 0.15 kg |
