SKU: UJSN22X10-MB
Branded UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
Branded UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
Regular price
$100.49
ex VAT
Regular price
Sale price
$100.49
ex VAT
In stock
Price Break
10+
$89.44
19+
$84.41
29+
$83.41
39+
$82.40
49+
$81.40
74+
$80.39
99+
$75.37
199+
$74.36
249+
$73.36
499+
$72.35
999+
$70.34
Description
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Length:
- 48mm
- Style:
- UJSN

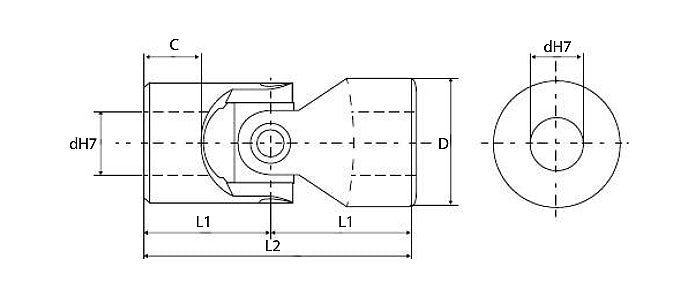

Technical
Technical
| Bore d H7 | 10mm |
|---|---|
| Diameter D | 22mm |
| Overall length L2 | 48mm |
| Pivot centre L1 | 24mm |
| Hub length C | 12mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 40kW |
| Maximum torque | 200 Nm |
| Weight KG | 0.1 kg |
