SKU: UJSN45X22-MB
Branded UJSN45X22 Steel Universal Single Joint with Needle Roller Bearing 22x45x95mm
Branded UJSN45X22 Steel Universal Single Joint with Needle Roller Bearing 22x45x95mm
Regular price
$149.42
ex VAT
Regular price
Sale price
$149.42
ex VAT
In stock
Price Break
10+
$132.98
19+
$125.51
29+
$124.02
39+
$122.52
49+
$121.03
74+
$119.54
99+
$112.07
199+
$110.57
249+
$109.08
499+
$107.58
999+
$104.59
Description
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 22mm
- Outside Diameter:
- 45mm
- Length:
- 95mm
- Style:
- UJSN

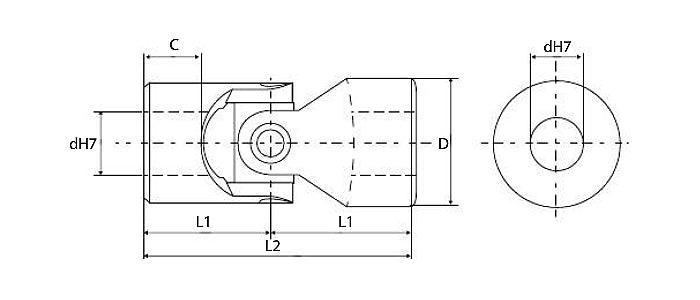

Technical
Technical
| Bore d H7 | 22mm |
|---|---|
| Diameter D | 45mm |
| Overall length L2 | 95mm |
| Pivot centre L1 | 47.5mm |
| Hub length C | 22mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 40kW |
| Maximum torque | 200 Nm |
| Weight KG | 0.95 kg |
