SKU: UJSP16X8ST-MB

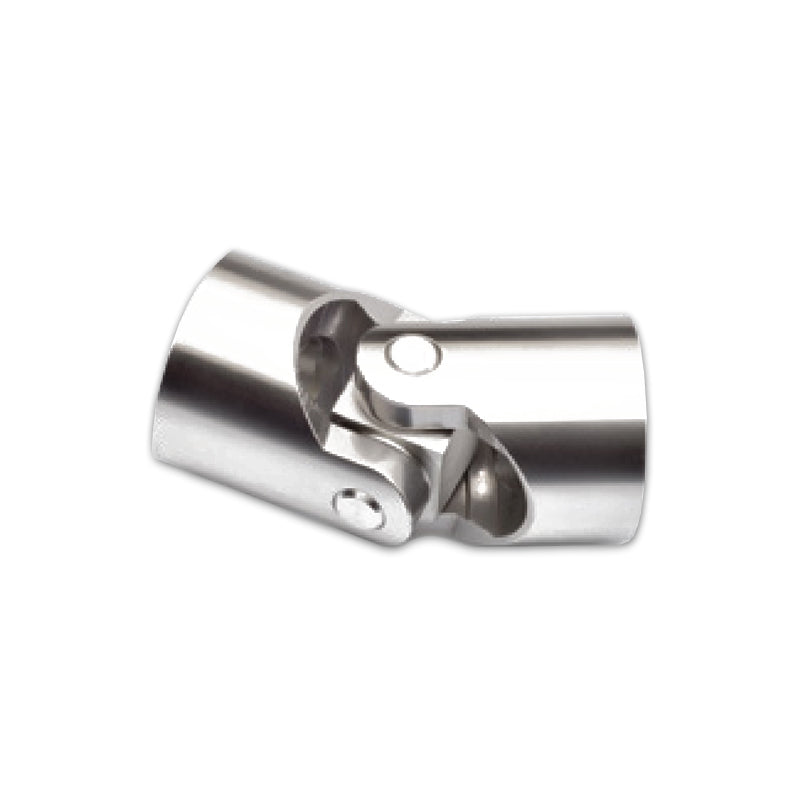

Branded UJSP16X8ST Stainless Steel 304 Universal Single Joint with Plain Bearing 8x16x40mm
Branded UJSP16X8ST Stainless Steel 304 Universal Single Joint with Plain Bearing 8x16x40mm
Regular price
$99.14
ex VAT
Regular price
Sale price
$99.14
ex VAT
In stock
Price Break
10+
$88.23
19+
$83.28
29+
$82.29
39+
$81.29
49+
$80.30
74+
$79.31
99+
$74.36
199+
$73.36
249+
$72.37
499+
$71.38
999+
$69.40
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Length:
- 40mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 8mm |
|---|---|
| Diameter D | 16mm |
| Overall length L2 | 40mm |
| Pivot centre L1 | 20mm |
| Hub length C | 11mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG01M16 |
| Weight KG | 0.05 kg |
