SKU: UJSP22X10ST-MB

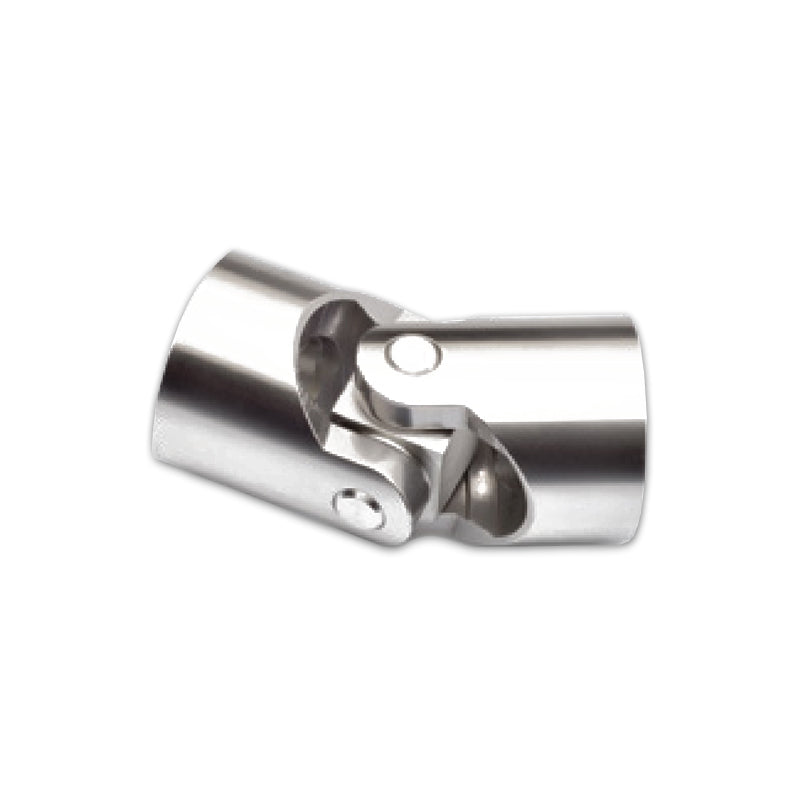

Branded UJSP22X10ST Stainless Steel 304 Universal Single Joint with Plain Bearing 10x22x48mm
Branded UJSP22X10ST Stainless Steel 304 Universal Single Joint with Plain Bearing 10x22x48mm
Regular price
$101.75
ex VAT
Regular price
Sale price
$101.75
ex VAT
In stock
Price Break
10+
$90.56
19+
$85.47
29+
$84.45
39+
$83.44
49+
$82.42
74+
$81.40
99+
$76.31
199+
$75.30
249+
$74.28
499+
$73.26
999+
$71.23
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Length:
- 48mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 10mm |
|---|---|
| Diameter D | 22mm |
| Overall length L2 | 48mm |
| Pivot centre L1 | 24mm |
| Hub length C | 12mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG03M22 |
| Weight KG | 0.1 kg |
