SKU: UJSP25X12ST-MB

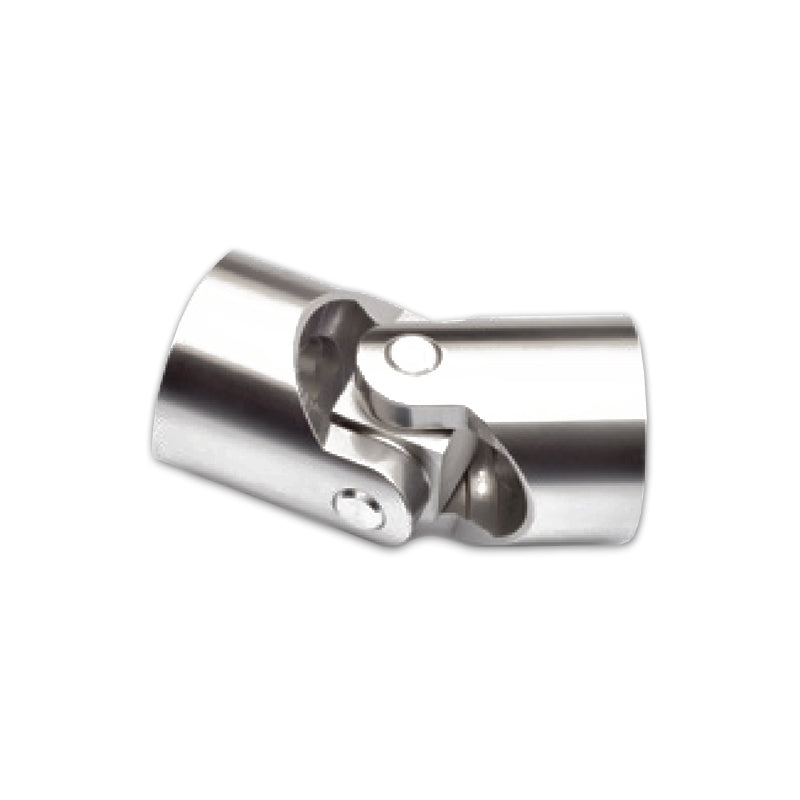

Branded UJSP25X12ST Stainless Steel 304 Universal Single Joint with Plain Bearing 12x25x56mm
Branded UJSP25X12ST Stainless Steel 304 Universal Single Joint with Plain Bearing 12x25x56mm
Regular price
$105.38
ex VAT
Regular price
Sale price
$105.38
ex VAT
In stock
Price Break
10+
$93.79
19+
$88.52
29+
$87.47
39+
$86.41
49+
$85.36
74+
$84.30
99+
$79.04
199+
$77.98
249+
$76.93
499+
$75.87
999+
$73.77
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 12mm
- Outside Diameter:
- 25mm
- Length:
- 56mm
- Style:
- UJSP
Technical
Technical

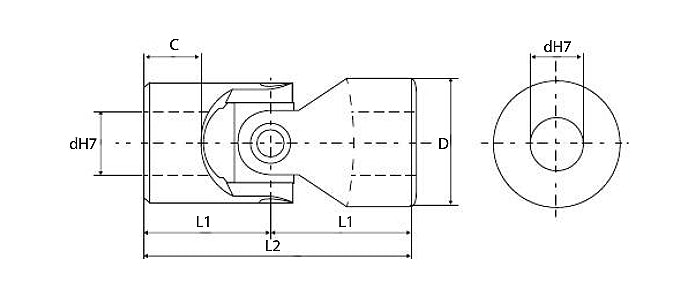

| Bore d H7 | 12mm |
|---|---|
| Diameter D | 25mm |
| Overall length L2 | 56mm |
| Pivot centre L1 | 28mm |
| Hub length C | 13mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG04M25 |
| Weight KG | 0.16 kg |
