SKU: UJSP36X18-MB
Branded UJSP36X18 Steel Universal Single Joint with Plain Bearing 18x36x74mm
Branded UJSP36X18 Steel Universal Single Joint with Plain Bearing 18x36x74mm
Regular price
$82.54
ex VAT
Regular price
Sale price
$82.54
ex VAT
In stock
Price Break
10+
$73.46
19+
$69.33
29+
$68.51
39+
$67.68
49+
$66.86
74+
$66.03
99+
$61.91
199+
$61.08
249+
$60.25
499+
$59.43
999+
$57.78
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 18mm
- Outside Diameter:
- 36mm
- Length:
- 74mm
- Style:
- UJSP
Technical
Technical

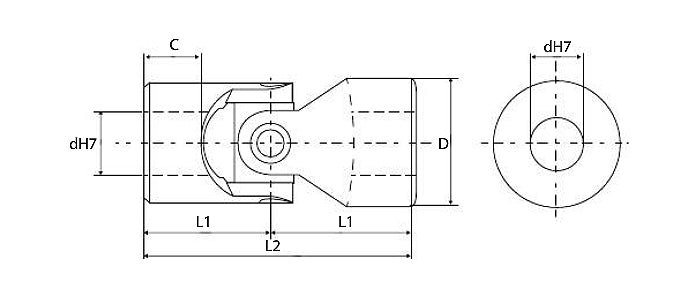

| Bore d H7 | 18mm |
|---|---|
| Diameter D | 36mm |
| Overall length L2 | 74mm |
| Pivot centre L1 | 37mm |
| Hub length C | 17mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG2M36 |
| Weight KG | 0.45 kg |
