SKU: UJSPL28XSOL-MB

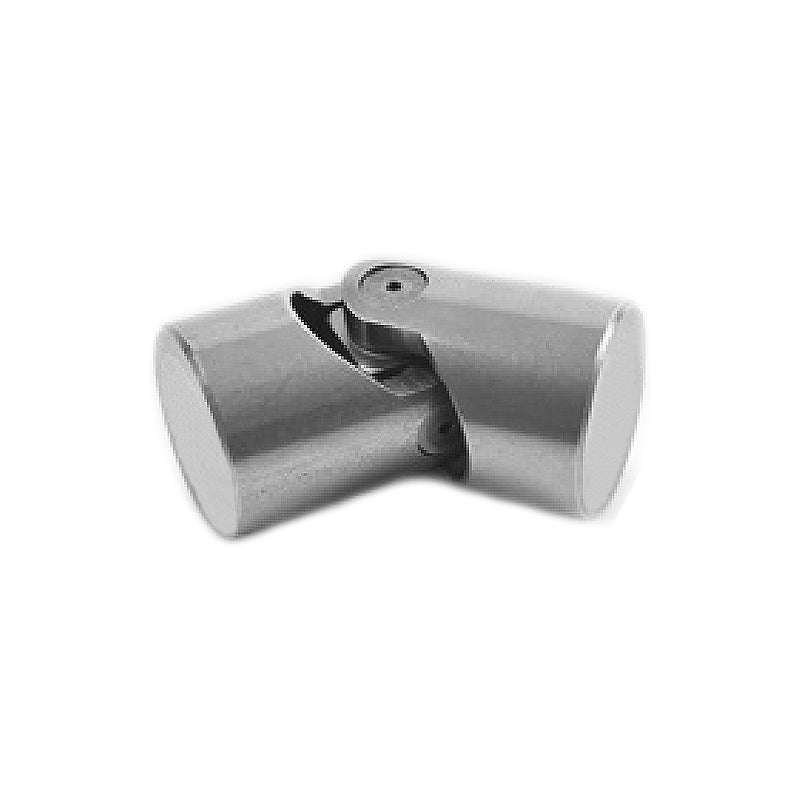

Branded UJSPL28XSOL Steel Unbored Long Universal Single Joint with Plain Bearing and Solid Ends 28x90mm - Allow 2-3 Days
Branded UJSPL28XSOL Steel Unbored Long Universal Single Joint with Plain Bearing and Solid Ends 28x90mm - Allow 2-3 Days
Regular price
$71.15
ex VAT
Regular price
Sale price
$71.15
ex VAT
In stock
Price Break
10+
$63.32
19+
$59.77
29+
$59.05
39+
$58.34
49+
$57.63
74+
$56.92
99+
$53.36
199+
$52.65
249+
$51.94
499+
$51.23
999+
$49.81
Description
Description
UJSPL Steel Unbored Long Universal Long Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This unbored long universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- Unbored
- Outside Diameter:
- 28mm
- Length:
- 90mm
- Style:
- UJSPL
Technical
Technical
| Bore | Unbored |
|---|---|
| Diameter D | 28mm |
| Overall length L2 | 90mm |
| Pivot centre L1 | 45mm |
| Hub length C | 29mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG05M28 |
| Weight KG | 0.2 kg |
