SKU: UKC208/H2308

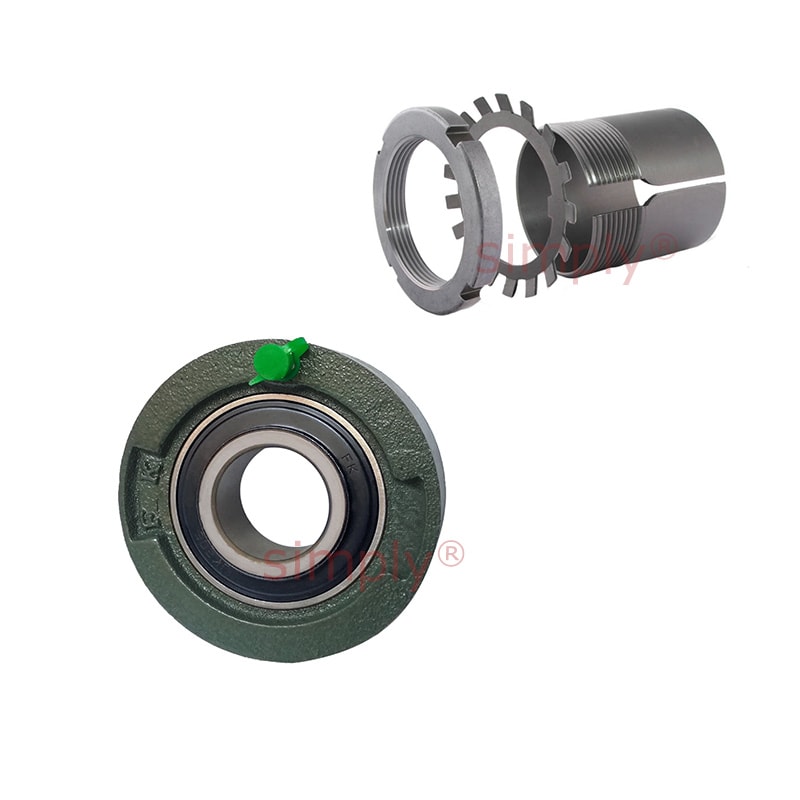

UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
Regular price
$56.44
ex VAT
Regular price
Sale price
$56.44
ex VAT
In stock
Price Break
10+
$50.23
19+
$47.41
29+
$46.85
39+
$46.28
49+
$45.72
74+
$45.15
99+
$42.33
199+
$41.77
249+
$41.20
499+
$40.64
999+
$39.51
Description
Description

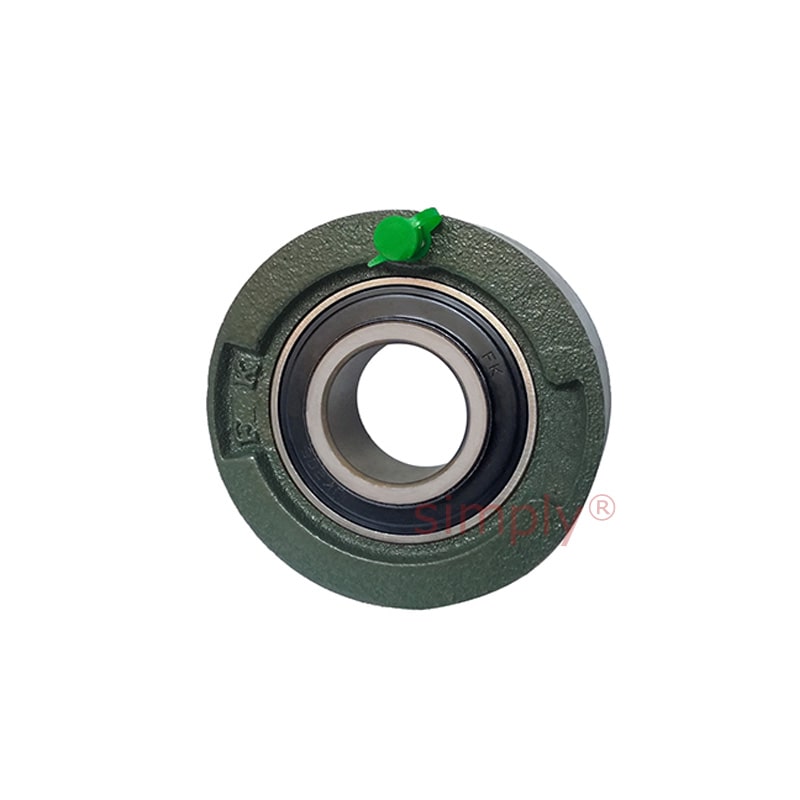

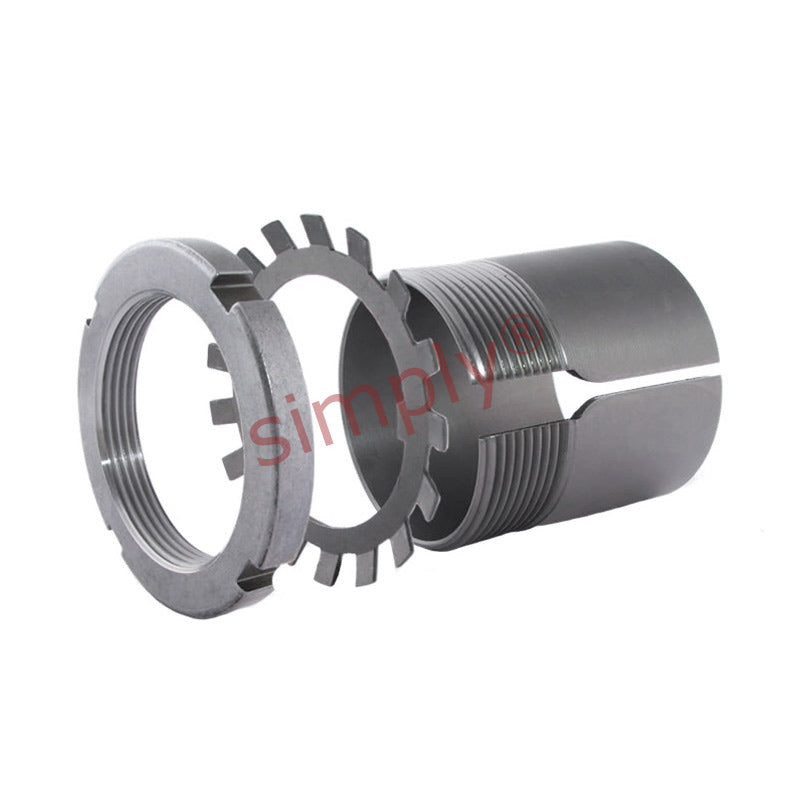

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Style:
- UKC
Technical
Technical

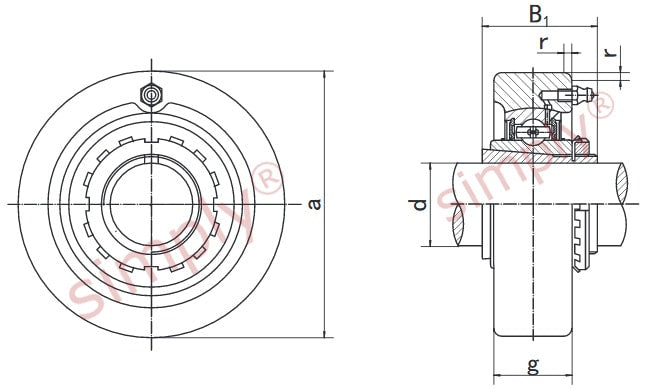

| Bore d | 35mm |
|---|---|
| Outer Dia a | 100mm |
| g | 30mm |
| r | 2.5mm |
| B | 46mm |
| Bearing No | UK208;H2308 |
| Housing No | C208 |
