SKU: UKC209D1/H2309X-NTN

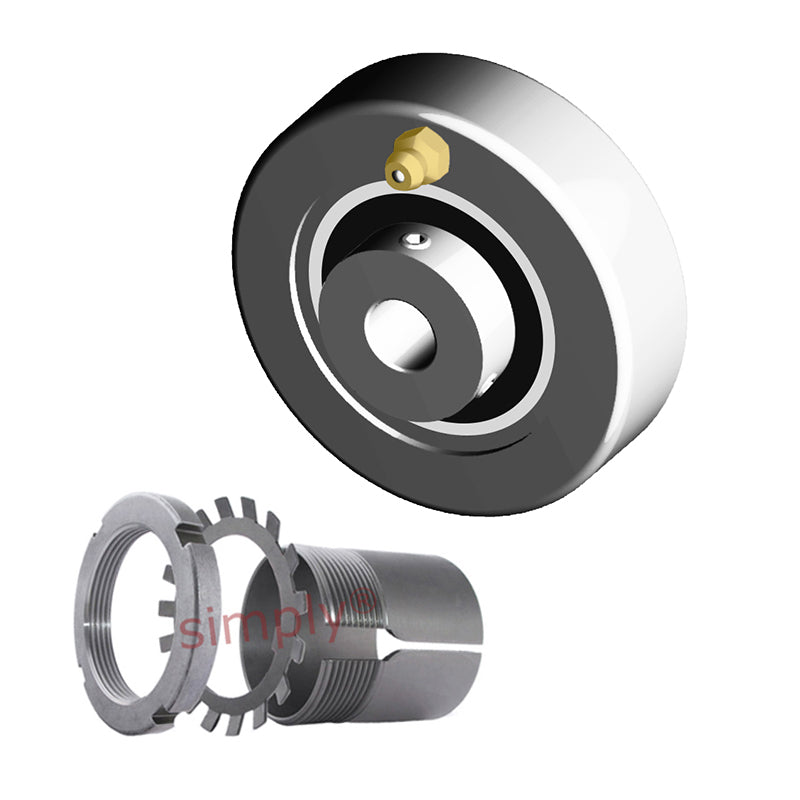

NTN UKC209D1/H2309X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
NTN UKC209D1/H2309X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
Regular price
$104.06
ex VAT
Regular price
Sale price
$104.06
ex VAT
In stock
Price Break
5+
$103.02
10+
$98.86
20+
$96.78
50+
$93.65
100+
$91.57
500+
$86.37
1000+
$72.84
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 110mm |
| A | 31mm |
| r | 2.5mm |
| B<sub>1</sub> | 50mm |
| Mass | 1.6 kg |
