SKU: UKC212H-SNR
SNR UKC212H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 55mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
SNR UKC212H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 55mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
Regular price
$148.75
ex VAT
Regular price
Sale price
$148.75
ex VAT
In stock
Price Break
5+
$147.26
10+
$141.31
20+
$138.34
50+
$133.88
100+
$130.90
500+
$123.46
1000+
$104.13
Description
Description

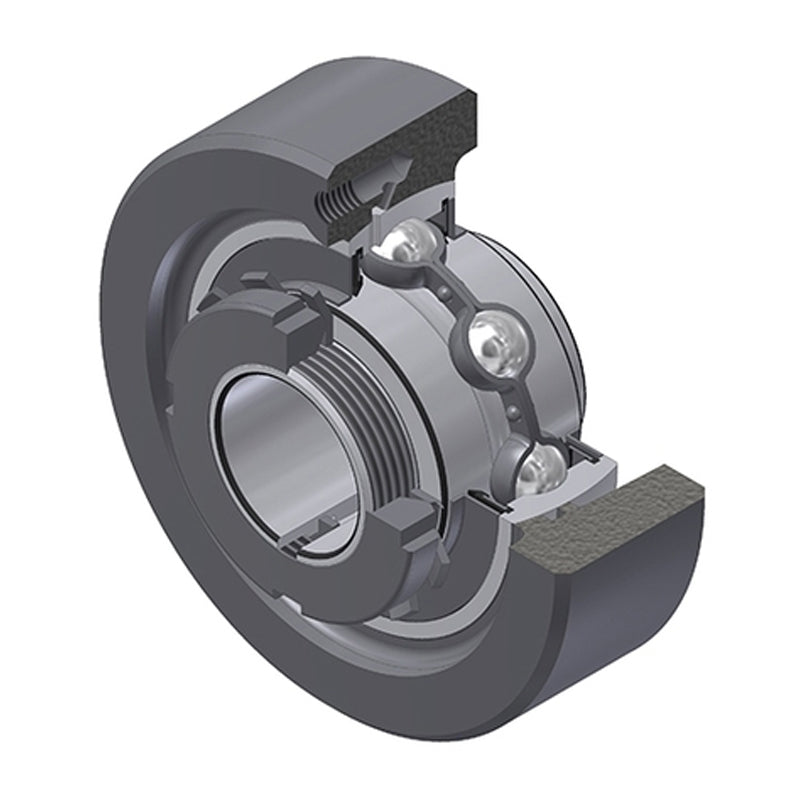

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 38mm |
| A3 | 2mm |
| B1 | 62mm |
| d1 | 80mm |
| H | 130mm |
| s1 | 31mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.51 kg |
