• SNR UKC319H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 85mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
1 1

SKU: UKC319H-SNR

SNR UKC319H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 85mm Bore Insert 72mm Outside Dia - Allow 2-3 Days

SNR UKC319H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 85mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
$752.76 ex VAT
$752.76 ex VAT
Sale Sold out

In stock

Price Break
2+ $715.12
5+ $677.48
10+ $639.85
15+ $602.21
20+ $587.15
30+ $572.10
50+ $496.82
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

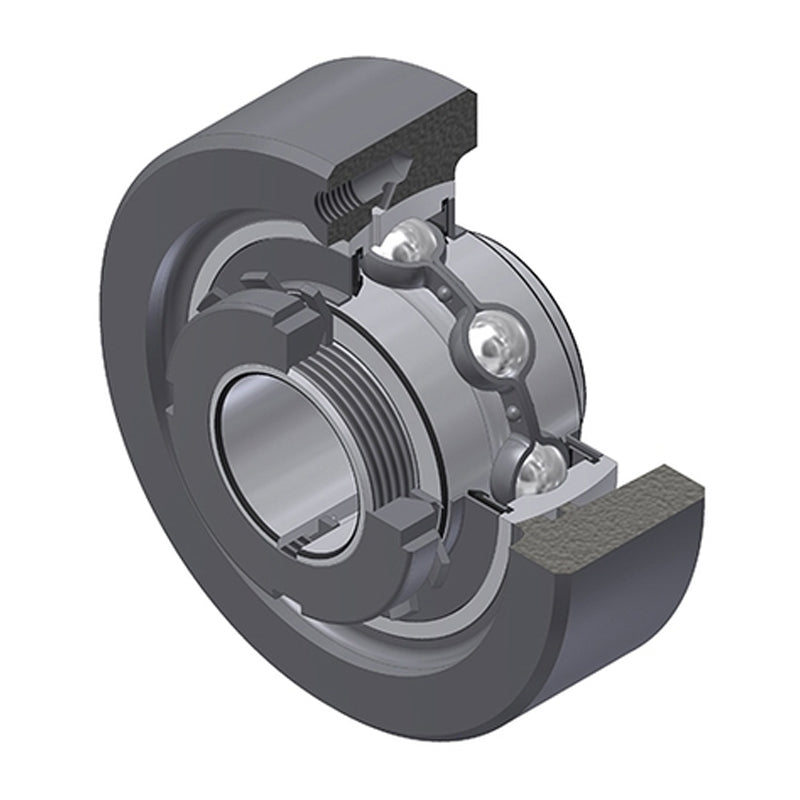

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert

Brand / Quality:
NTN - High Quality
Inside Diameter:
85mm
Style:
UKC
Technical
--- Dimensions
Shaft diameter d 85mm
A 72mm
A3 3mm
B1 90mm
d1 125mm
H 240mm
s1 52mm
G M10x1
--- Load rating
Dynamic load C 156 kN
Static load C0 122 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 15.7 kg
