• SNR UKC324H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 110mm Bore Insert 90mm Outside Dia - Allow 2-3 Days
1 1

SKU: UKC324H-SNR

SNR UKC324H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 110mm Bore Insert 90mm Outside Dia - Allow 2-3 Days

SNR UKC324H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 110mm Bore Insert 90mm Outside Dia - Allow 2-3 Days
$1,621.31 ex VAT
$1,621.31 ex VAT
Sale Sold out

In stock

Price Break
2+ $1,540.24
5+ $1,459.18
10+ $1,378.11
15+ $1,297.05
20+ $1,264.62
30+ $1,232.20
50+ $1,070.06
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

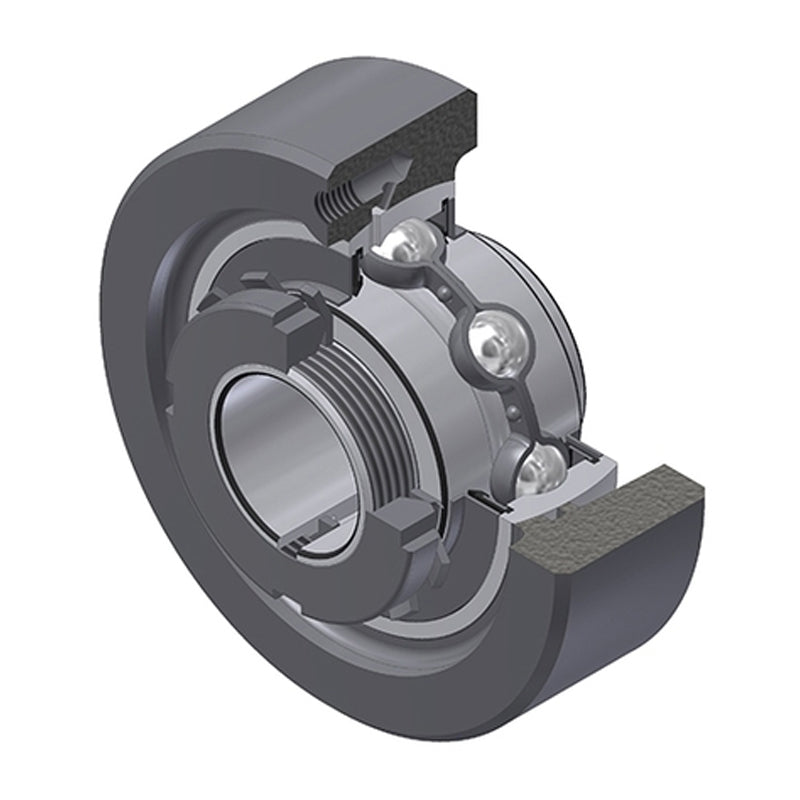

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert

Brand / Quality:
NTN - High Quality
Inside Diameter:
110mm
Style:
UKC
Technical
--- Dimensions
Shaft diameter d 110mm
A 90mm
A3 3.5mm
B1 112mm
d1 155mm
H 320mm
s1 65.5mm
G M10x1
--- Load rating
Dynamic load C 228 kN
Static load C0 208 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 36 kg
