SKU: UKC326H-SNR

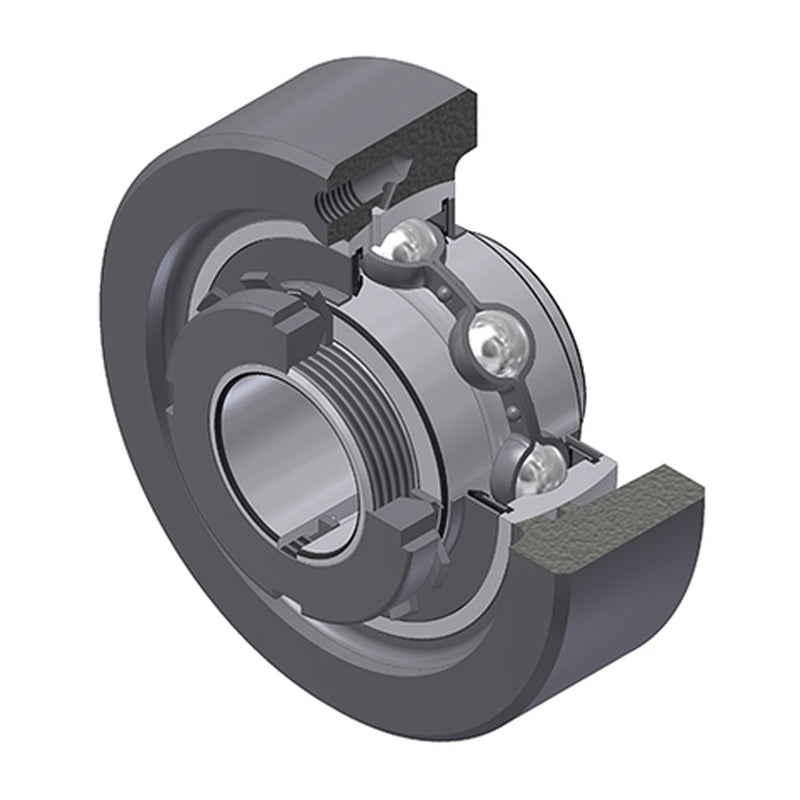

SNR UKC326H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 115mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
SNR UKC326H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 115mm Bore Insert 100mm Outside Dia - Allow 2-3 Days
Regular price
$2,161.49
ex VAT
Regular price
Sale price
$2,161.49
ex VAT
In stock
Price Break
2+
$2,053.42
5+
$1,945.34
10+
$1,837.27
15+
$1,729.19
20+
$1,685.96
30+
$1,642.73
50+
$1,426.58
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 115mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 115mm |
| A | 100mm |
| A3 | 3.5mm |
| B1 | 121mm |
| d1 | 165mm |
| H | 340mm |
| s1 | 68mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 252 kN |
| Static load C0 | 242 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 44.3 kg |
