SKU: UKFE216H-SNR

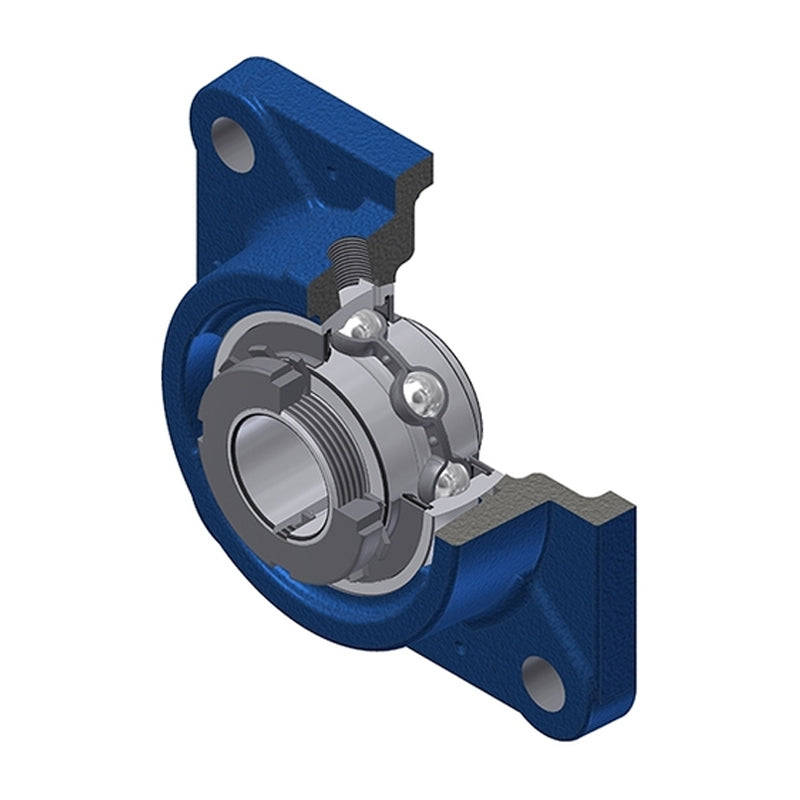

SNR UKFE216H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days
SNR UKFE216H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days
Regular price
$327.39
ex VAT
Regular price
Sale price
$327.39
ex VAT
In stock
Price Break
5+
$324.12
10+
$311.02
20+
$304.47
50+
$294.65
100+
$288.10
500+
$271.73
1000+
$229.17
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UKFE
- Bolt Hole Centres:
- 153mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| A | 61mm |
| A1 | 20mm |
| A2 | 80.3mm |
| B | 44mm |
| B1 | 78mm |
| d1 | 105mm |
| e | 41.3mm |
| J | 153mm |
| L | 197mm |
| N | 23mm |
| s1 | 39mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2316 |
| Mass | 7.46 kg |
