SKU: UKT309D1/H2309X-NTN

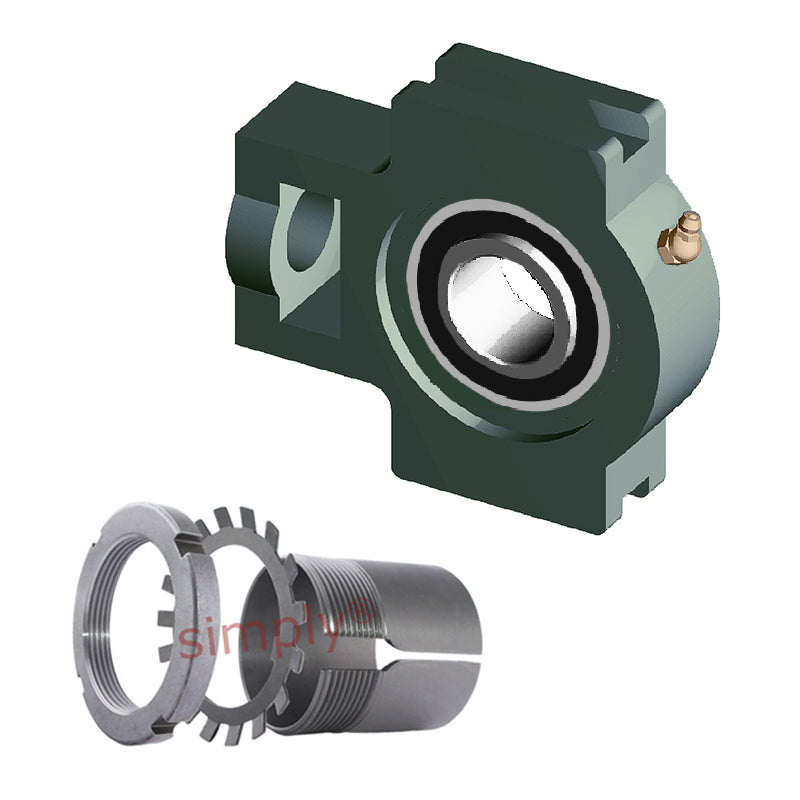

NTN UKT309D1/H2309X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
NTN UKT309D1/H2309X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
$178.33
ex VAT
Regular price
Sale price
$178.33
ex VAT
In stock
Price Break
5+
$176.55
10+
$169.41
20+
$165.85
50+
$160.50
100+
$156.93
500+
$148.01
1000+
$124.83
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| N<sub>1</sub> | 24mm |
| L<sub>2</sub> | 20mm |
| H<sub>2</sub> | 90mm |
| N<sub>2</sub> | 55mm |
| N | 34mm |
| L<sub>3</sub> | 97mm |
| A<sub>1</sub> | 18mm |
| H<sub>1</sub> | 125mm |
| H | 138mm |
| L | 178mm |
| A<sub>2</sub> | 38mm |
| A | 55mm |
| r | 68mm |
| L<sub>1</sub> | 110mm |
| B<sub>1</sub> | 50mm |
| Mass | 4 kg |
