SKU: USC202-SNR

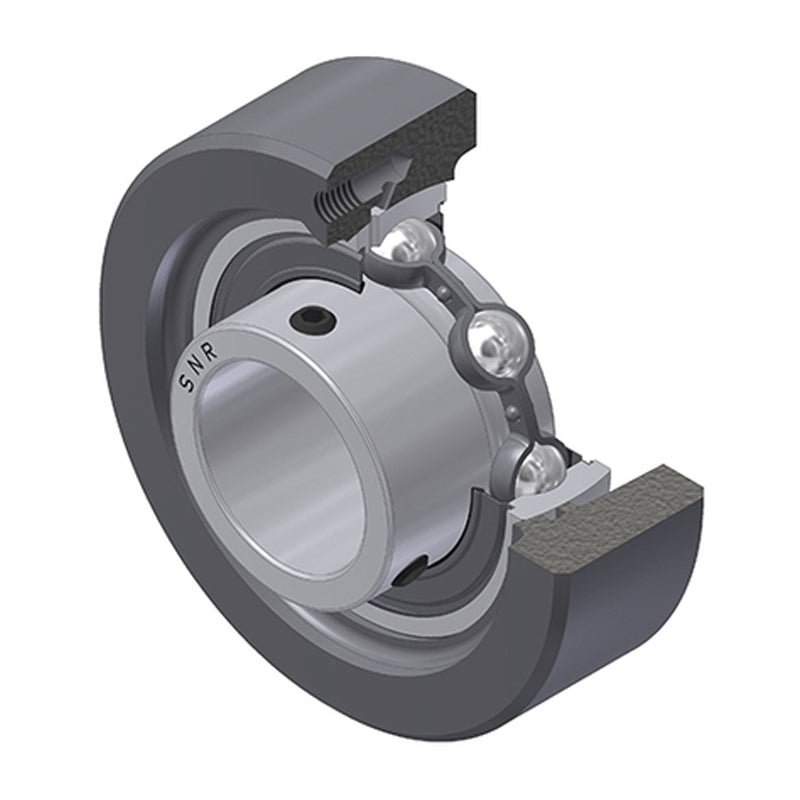

SNR USC202 Metric Cast Iron Cartridge Unit with 15mm Bore Insert 20mm Outside Dia - Allow 2-3 Days
SNR USC202 Metric Cast Iron Cartridge Unit with 15mm Bore Insert 20mm Outside Dia - Allow 2-3 Days
Regular price
$26.74
ex VAT
Regular price
Sale price
$26.74
ex VAT
In stock
Price Break
5+
$26.47
10+
$25.40
20+
$24.87
50+
$24.07
100+
$23.53
500+
$22.19
1000+
$18.72
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- USC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 20mm |
| A3 | 1.5mm |
| B | 22mm |
| H | 67mm |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.38 kg |
