SKU: USC207-SNR
SNR USC207 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
SNR USC207 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
Regular price
$41.61
ex VAT
Regular price
Sale price
$41.61
ex VAT
In stock
Price Break
5+
$41.19
10+
$39.53
20+
$38.70
50+
$37.45
100+
$36.62
500+
$34.54
1000+
$29.13
Description
Description

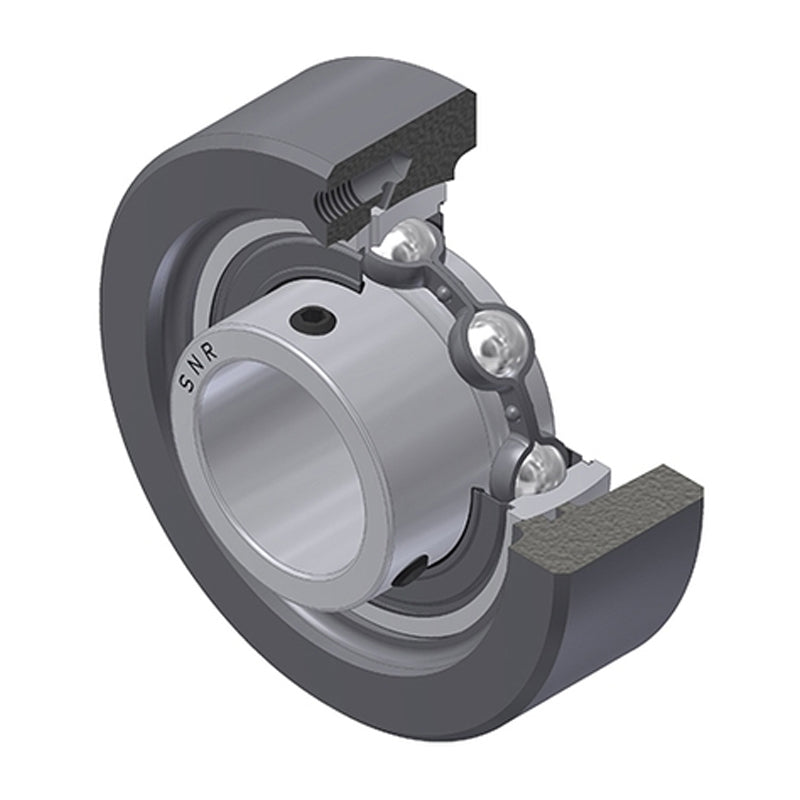

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 28mm |
| A3 | 1.5mm |
| B | 32mm |
| H | 90mm |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.82 kg |
