SKU: W18-EU

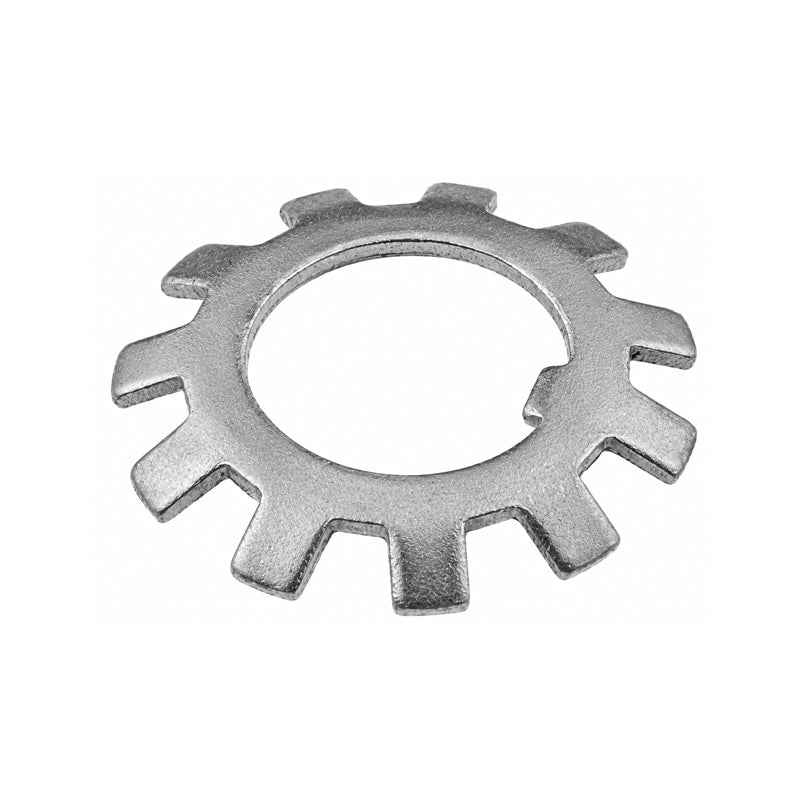

Premier Budget W18 Imperial Locking Tab Washer 3.582x4.938x0.084 inch
Premier Budget W18 Imperial Locking Tab Washer 3.582x4.938x0.084 inch
Regular price
$9.30
ex VAT
Regular price
Sale price
$9.30
ex VAT
In stock
Price Break
10+
$8.28
19+
$7.81
29+
$7.72
39+
$7.63
49+
$7.53
74+
$7.44
99+
$6.98
199+
$6.88
249+
$6.79
499+
$6.70
999+
$6.51
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 90.98mm = 3.582 inch
- Outside Diameter:
- 125.43mm = 4.938 inch
- Width:
- 2.13mm = 0.084 inch
Technical
Technical
| d | 3.582 inch |
|---|---|
| d<sub>1</sub> | 4.311 inch |
| d<sub>2</sub> | 4.938 inch |
| B | 0.084 inch |
| f | 0.353 inch |
| M | 3.418 inch |
| V | 0.188 inch |
| Mass | 0.0726 kg |
