SKU: W22-EU

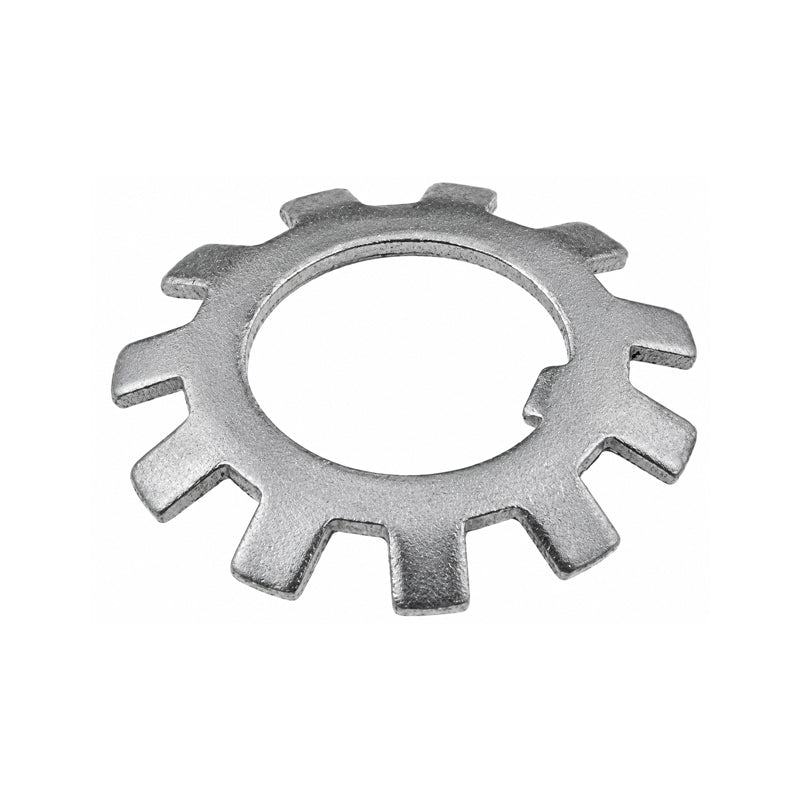

Premier Budget W22 Imperial Locking Tab Washer 4.395x6.063x0.115 inch
Premier Budget W22 Imperial Locking Tab Washer 4.395x6.063x0.115 inch
Regular price
$11.92
ex VAT
Regular price
Sale price
$11.92
ex VAT
In stock
Price Break
10+
$10.61
19+
$10.01
29+
$9.89
39+
$9.77
49+
$9.66
74+
$9.54
99+
$8.94
199+
$8.82
249+
$8.70
499+
$8.58
999+
$8.34
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 111.63mm = 4.395 inch
- Outside Diameter:
- 153.99mm = 6.063 (6-1/16) inch
- Width:
- 2.92mm = 0.115 inch
Technical
Technical
| d | 4.395 inch |
|---|---|
| d<sub>1</sub> | 5.311 inch |
| d<sub>2</sub> | 6.063 inch |
| B | 0.115 inch |
| f | 0.353 inch |
| M | 4.185 inch |
| V | 0.25 inch |
| Mass | 0.1588 kg |
